Fuel Pump Removal (LF4)
WARNING: This page is about a different variant/trim than selected.

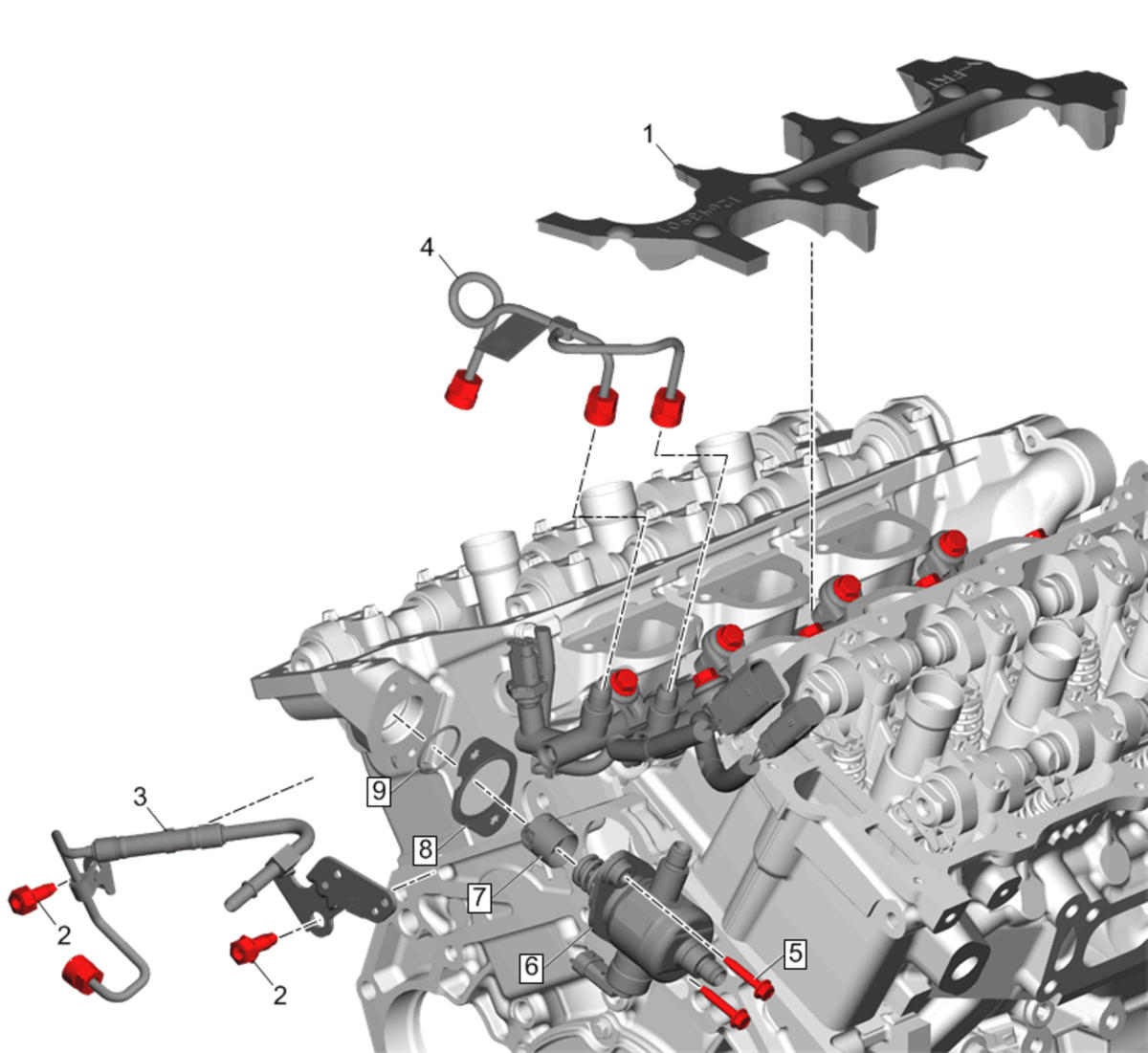

| Callout | Component Name |
|---|---|
| 1 | Fuel Injection Fuel Rail Noise Shield |
| 2 | Fuel Feed Pipe Bracket Bolt |
| 3 | Fuel Feed Pipe
NOTE:
Remove and DISCARD the pipe. |
| 4 | Fuel Feed Intermediate Pipe
NOTE:
Remove and DISCARD the pipe. |
| 5 | Fuel Pump Bolt
CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage
NOTE:
Remove and DISCARD the bolts. |
| 6 | Fuel Pump |
| 7 | Fuel Pump O-Ring
NOTE:
Remove and DISCARD the O-ring seal. |
| 8 | Fuel Pump Gasket
NOTE:
Remove and DISCARD the gasket. |
| 9 | Valve Lifter Follower |
