Engine Block - Right - Rear

WARNING: This page is about a different variant/trim than selected.

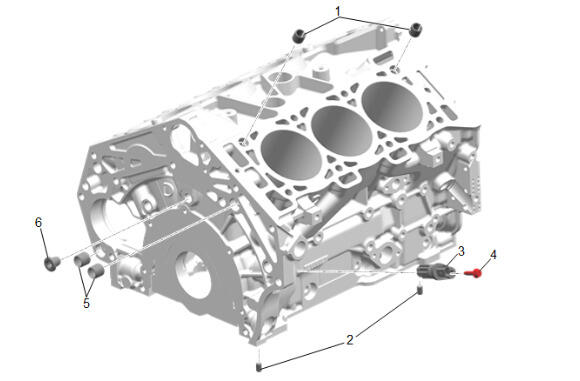

Fig 1: Exploded View Of Engine Block Disassemble Components - Right - Rear (LF4)
GM2887520Courtesy of GENERAL MOTORS COMPANY
Engine Block - Right - Rear

Callout Component Name
1 Cylinder Block-To-Cylinder Head Alignment Dowels
2 Cylinder Block-To-Oil Pan Alignment Dowels
3 Crankshaft Position Sensor
4 Crankshaft Position Sensor Bolt
5 Cylinder Block-To-Transmission Alignment Dowels
6 M14 Rear Oil Gallery Threaded Plug
