Turbocharger Coolant Feed Pipe Removal
WARNING: This page is about a different variant/trim than selected.

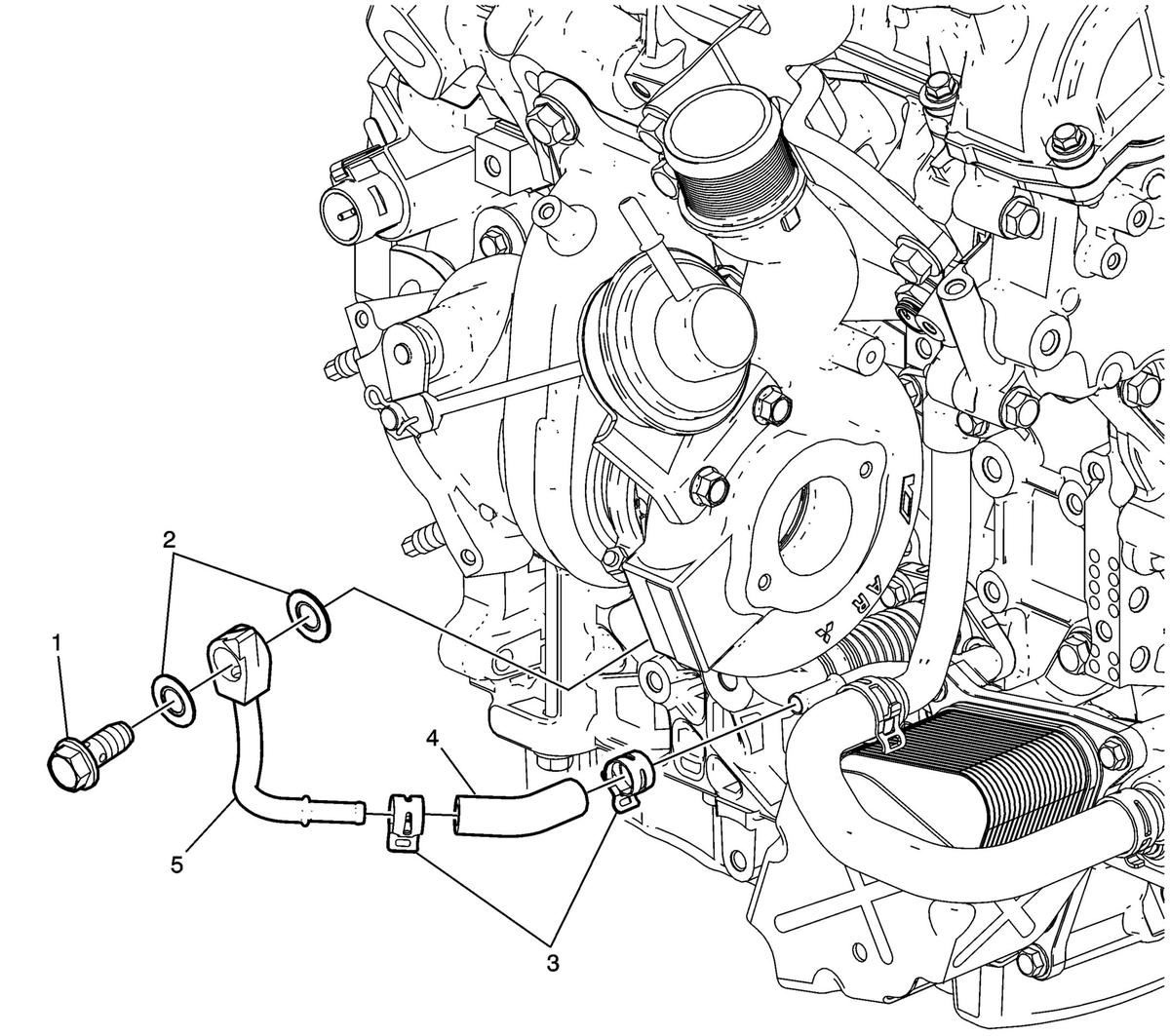

Turbocharger Coolant Feed Pipe Removal
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Coolant Feed Pipe Bolt |
| 2 | Turbocharger Coolant Feed Pipe Gaskets
NOTE:
Discard gaskets, they are not reusable. |
| 3 | Turbocharger Coolant Feed Pipe Hose Clamps |
| 4 | Turbocharger Coolant Feed Pipe Hose |
| 5 | Turbocharger Coolant Feed Pipe |
