Turbocharger Heat Shield Removal

WARNING: This page is about a different variant/trim than selected.

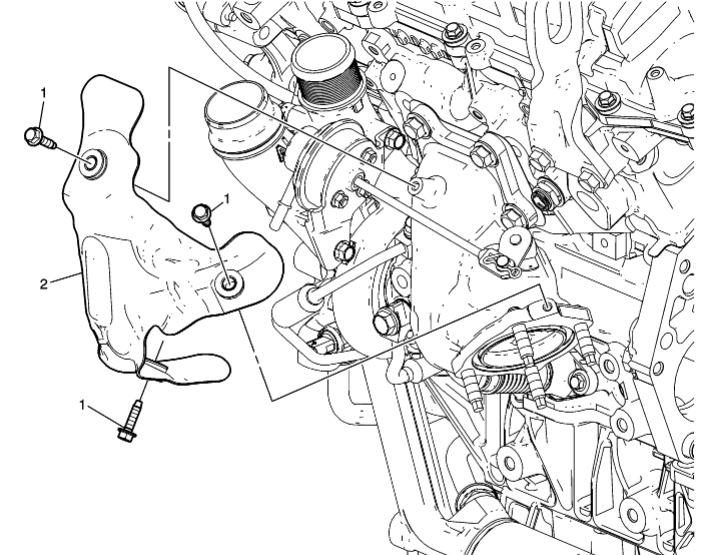

GM3239439Courtesy of GENERAL MOTORS COMPANY
Turbocharger Heat Shield Removal

Callout Component Name
1 Turbocharger Heat Shield Bolts
2 Turbocharger Heat Shield
