Charge Air Cooler Inlet Air Tube Removal

WARNING: This page is about a different variant/trim than selected.

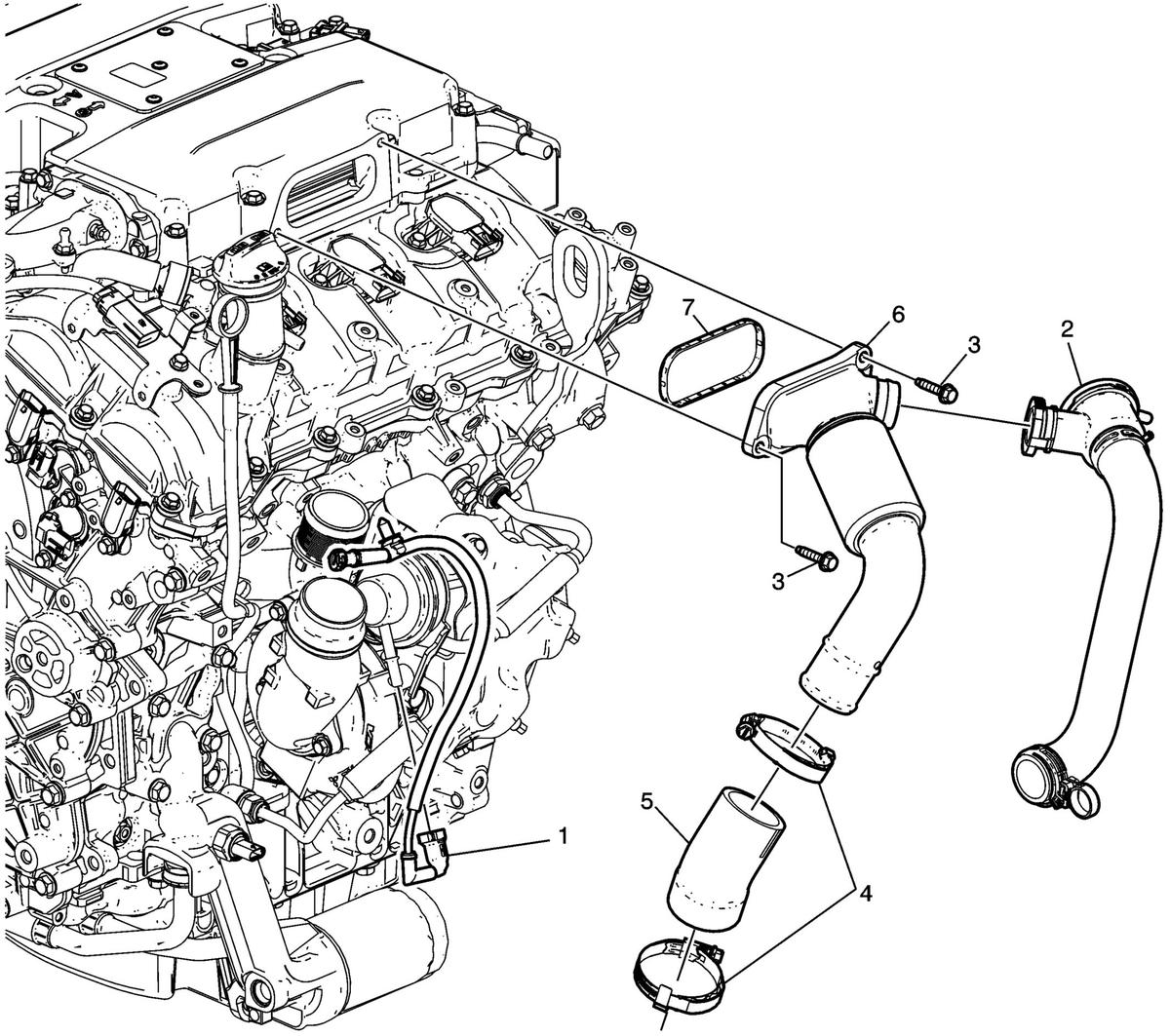

Fig 1: Exploded View Of Charge Air Cooler Inlet Air Tube Removal Components - Left Side (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger Wastegate Actuator Vacuum Tube
2	Charge Air Bypass Valve Assembly
3	Charge Air Cooler Inlet Air Tube Bolts
4	Charge Air Cooler Inlet Hose Air Clamps
5	Charge Air Cooler Inlet Air Hose
6	Charge Air Cooler Inlet Air Tube Assembly CAUTION: If a turbocharger has failed, clean any turbocharger debris or excessive oil from the charge air cooler system before installing the new turbocharger. Failure to clean debris from the charge air cooler system will cause severe turbocharger and engine damage upon startup. Procedure Refer to Compressor Air Intake Turbocharger Cleaning and Inspection
7	Charge Air Cooler Inlet Air Tube Seal NOTE: Discard seal, it is not reusable.
