Instrument Panel Center Air Outlet Replacement - Left Side

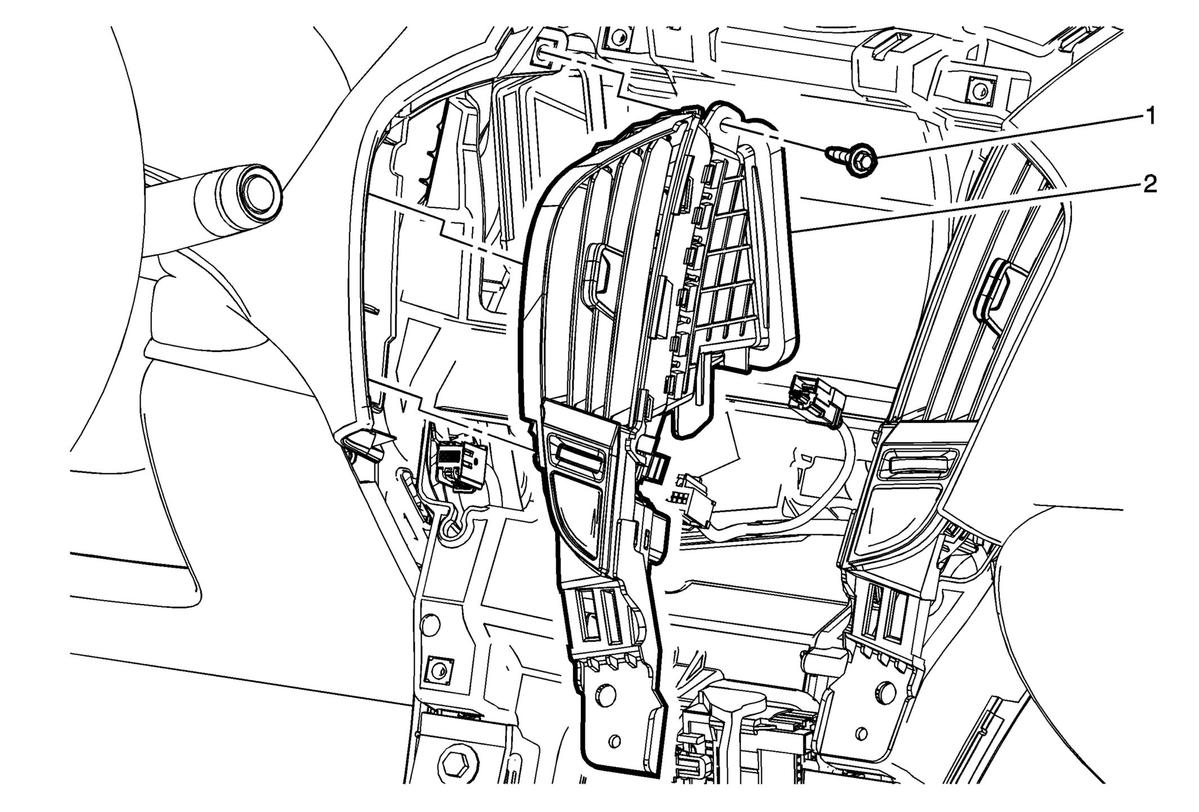

GM3282745Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1 Instrument Panel Center Air Outlet Fastener
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Center Air Outlet - Left Side
Procedure
Use a suitable tool to release the tabs securing the center air outlet from the center air outlet bracket.
