Ambient Air Temperature Gauge Sensor Replacement (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement (V-Series)

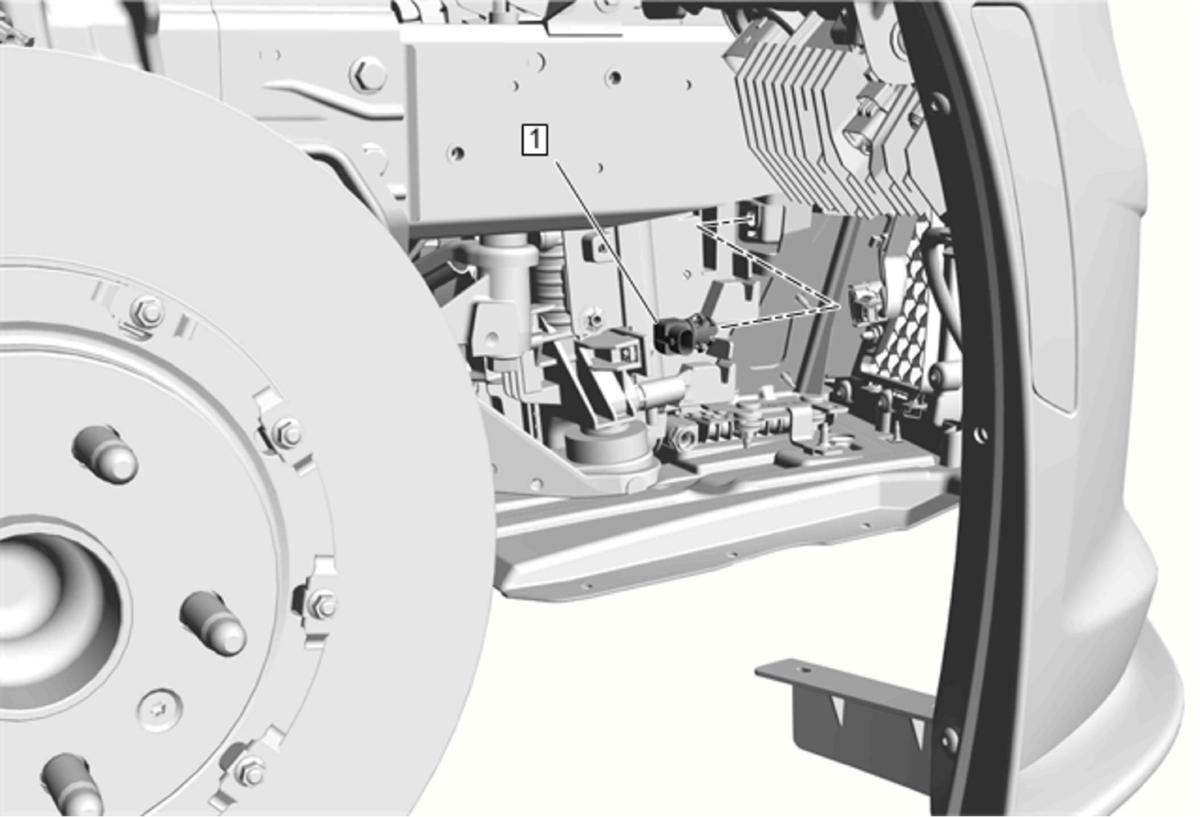

1	Ambient Air Temperature Gauge Sensor Procedure Disconnect the electrical connector. Depress the ambient air temperature gauge sensor tabs to remove.

Callout

Component Name

Ambient Air Temperature Gauge Sensor

Procedure
