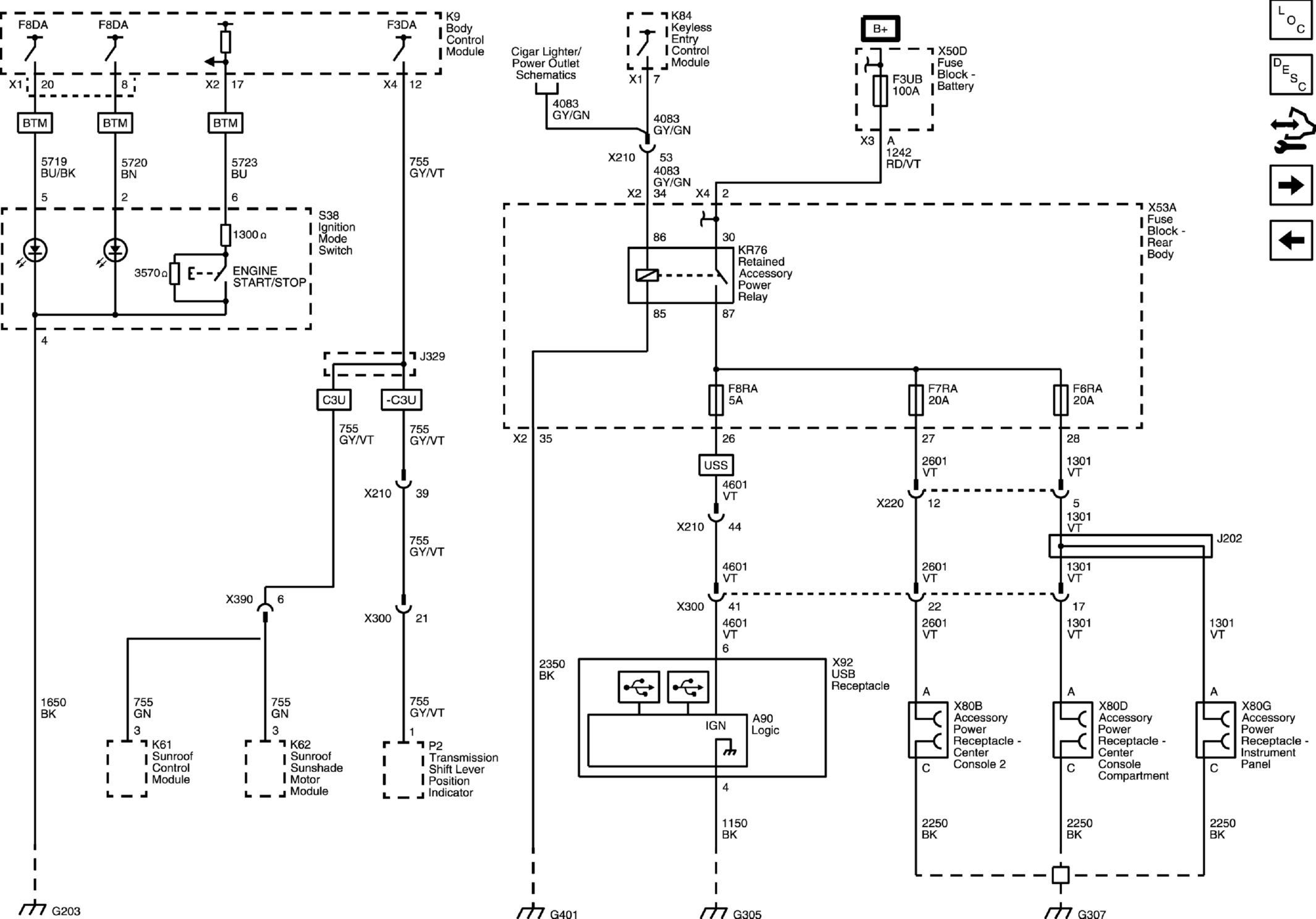

S38 Ignition Mode Switch and KR76 Retained Accessory Power Relay (CZ2)

GM5227228

Courtesy of GENERAL MOTORS COMPANY
