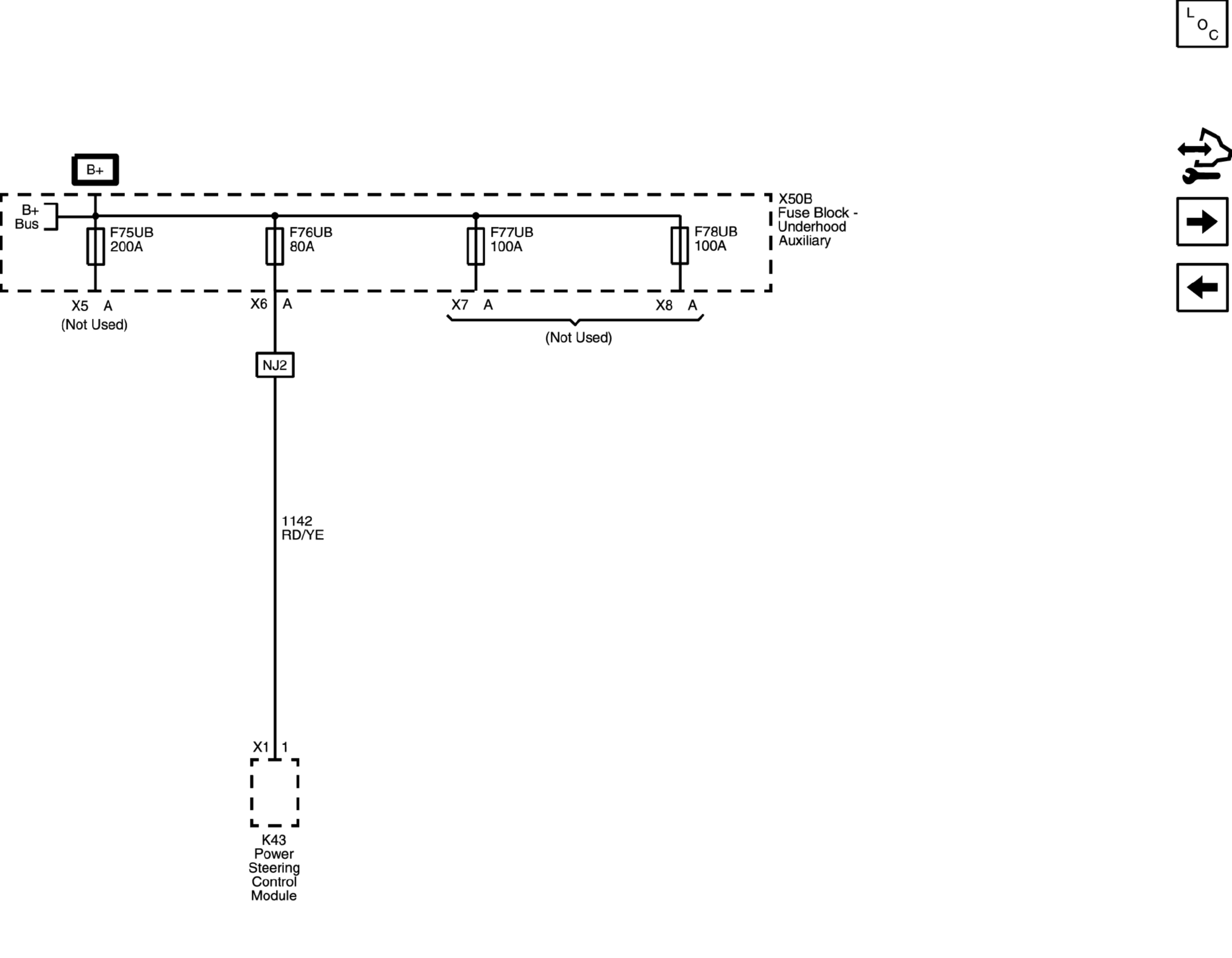

Home >> Cadillac >> 2018 >> XTS Livery >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F75UB, F76UB, F77UB and F78UB Fuses
