Home >> Cadillac >> 2018 >> XTS Livery >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Diagrams >> Power Distribution Wiring Schematics >> F31UA, F55UA, F62UA, F64UA and F67UA Fuses

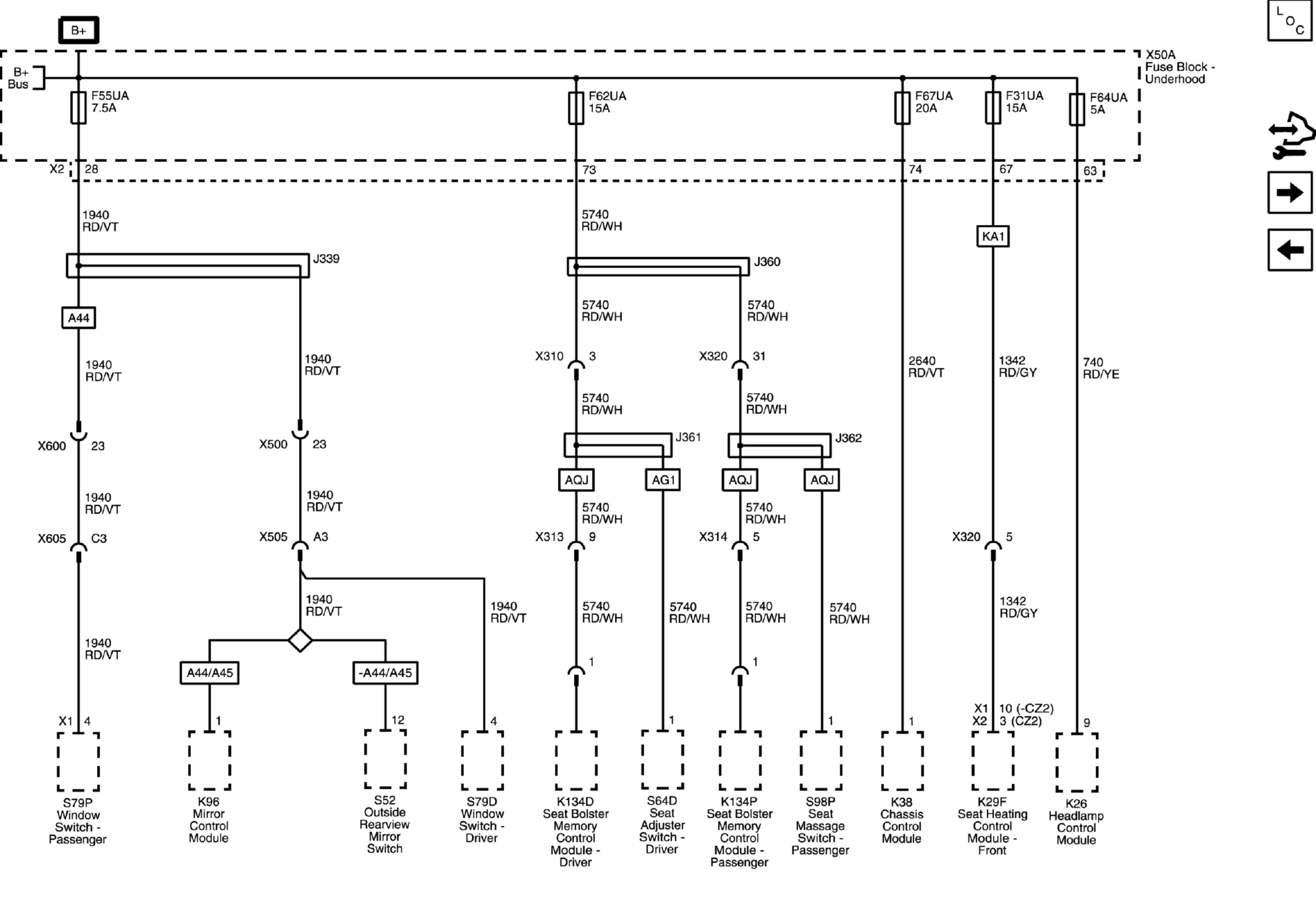

F31UA, F55UA, F62UA, F64UA and F67UA Fuses

GM4733491Courtesy of GENERAL MOTORS COMPANY
