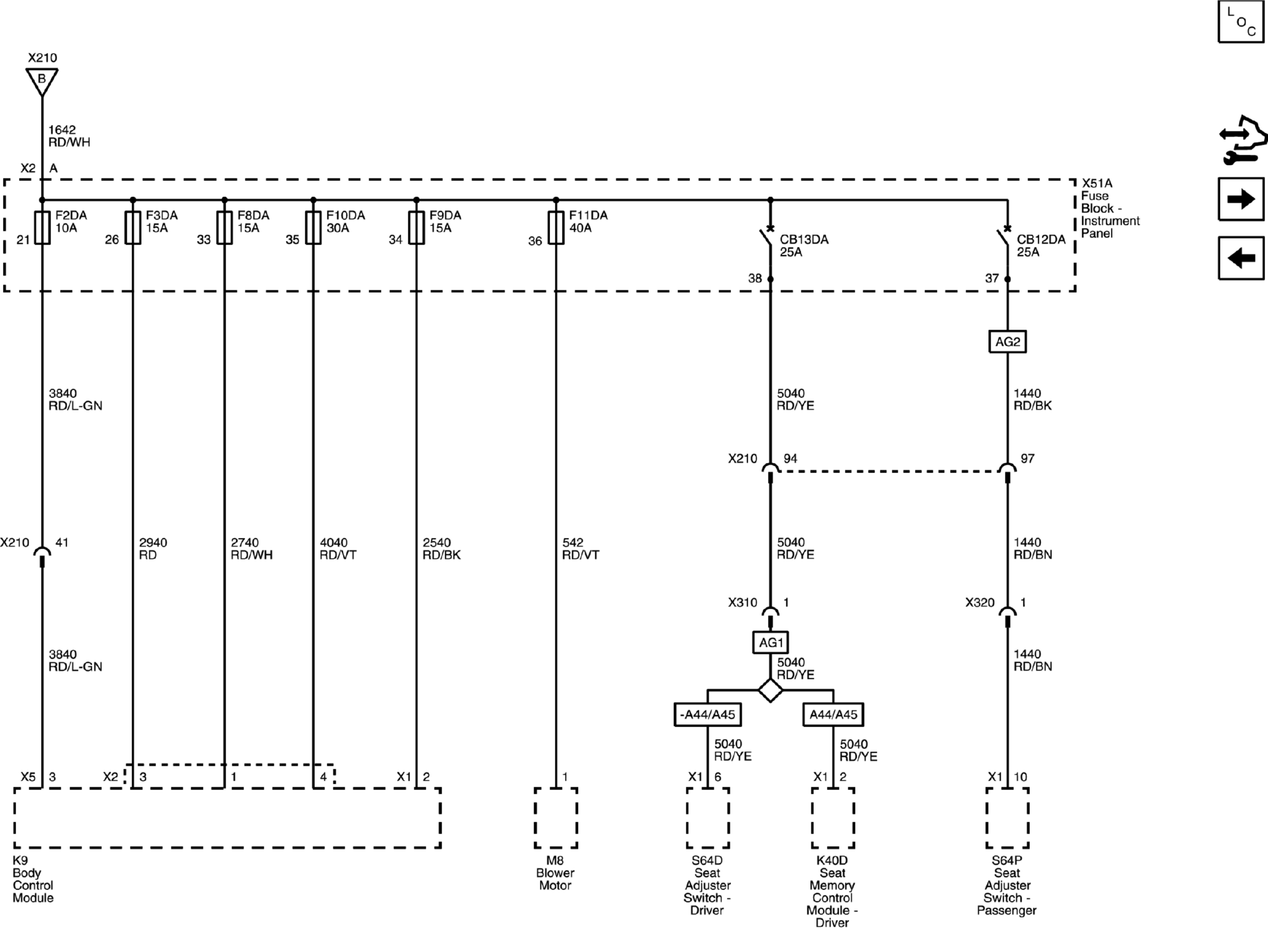

F2DA, F3DA, F8DA, F9DA, F10DA and F11DA Fuses, F12DA and F13DA Circuit Breakers

GM4733514

Courtesy of GENERAL MOTORS COMPANY
