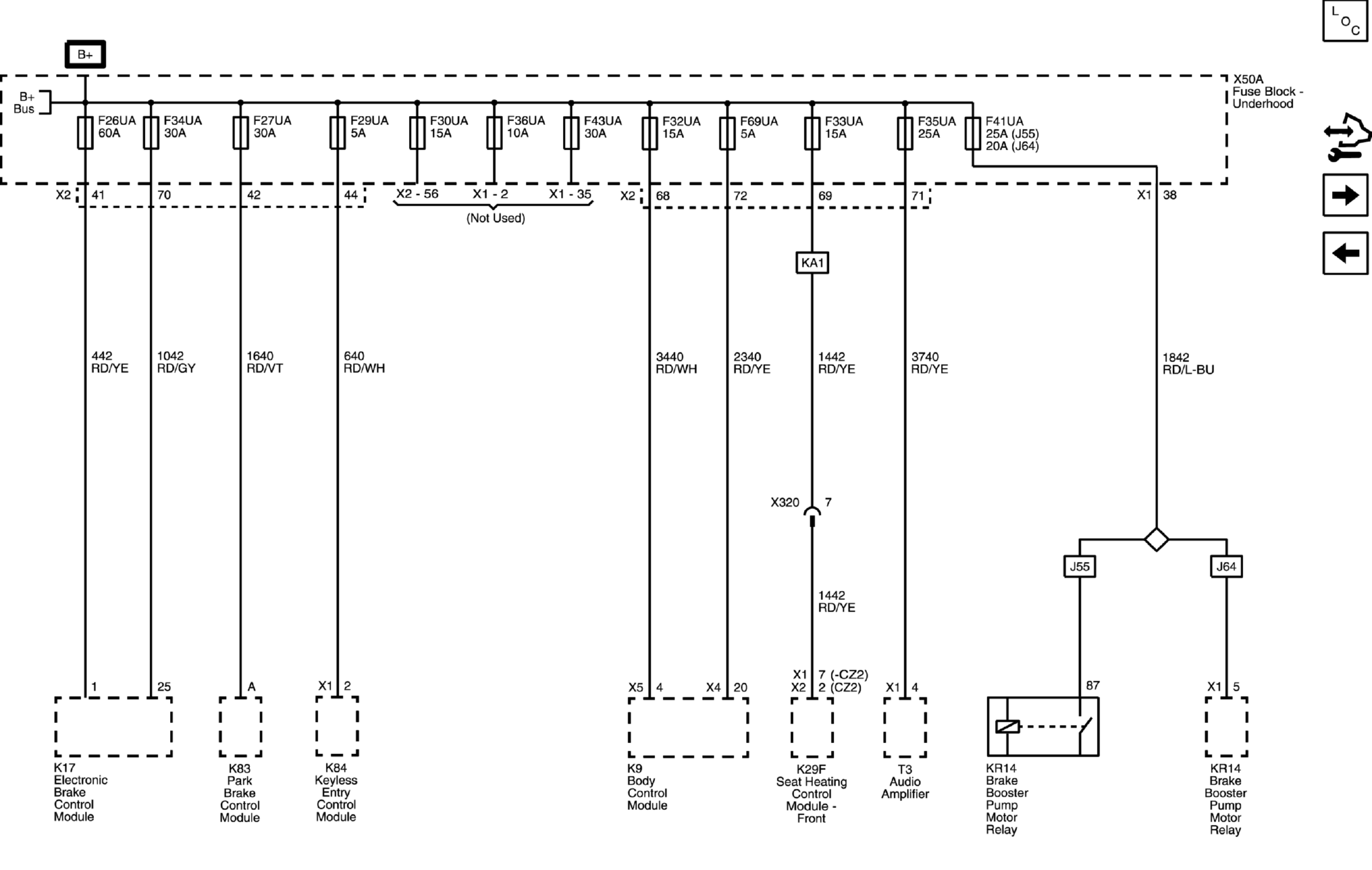

F26UA, F27UA, F29UA, F30UA, F32UA, F33UA, F34UA, F35UA, F36UA, F41UA, F43UA and F69UA Fuses

GM4733489

Courtesy of GENERAL MOTORS COMPANY
