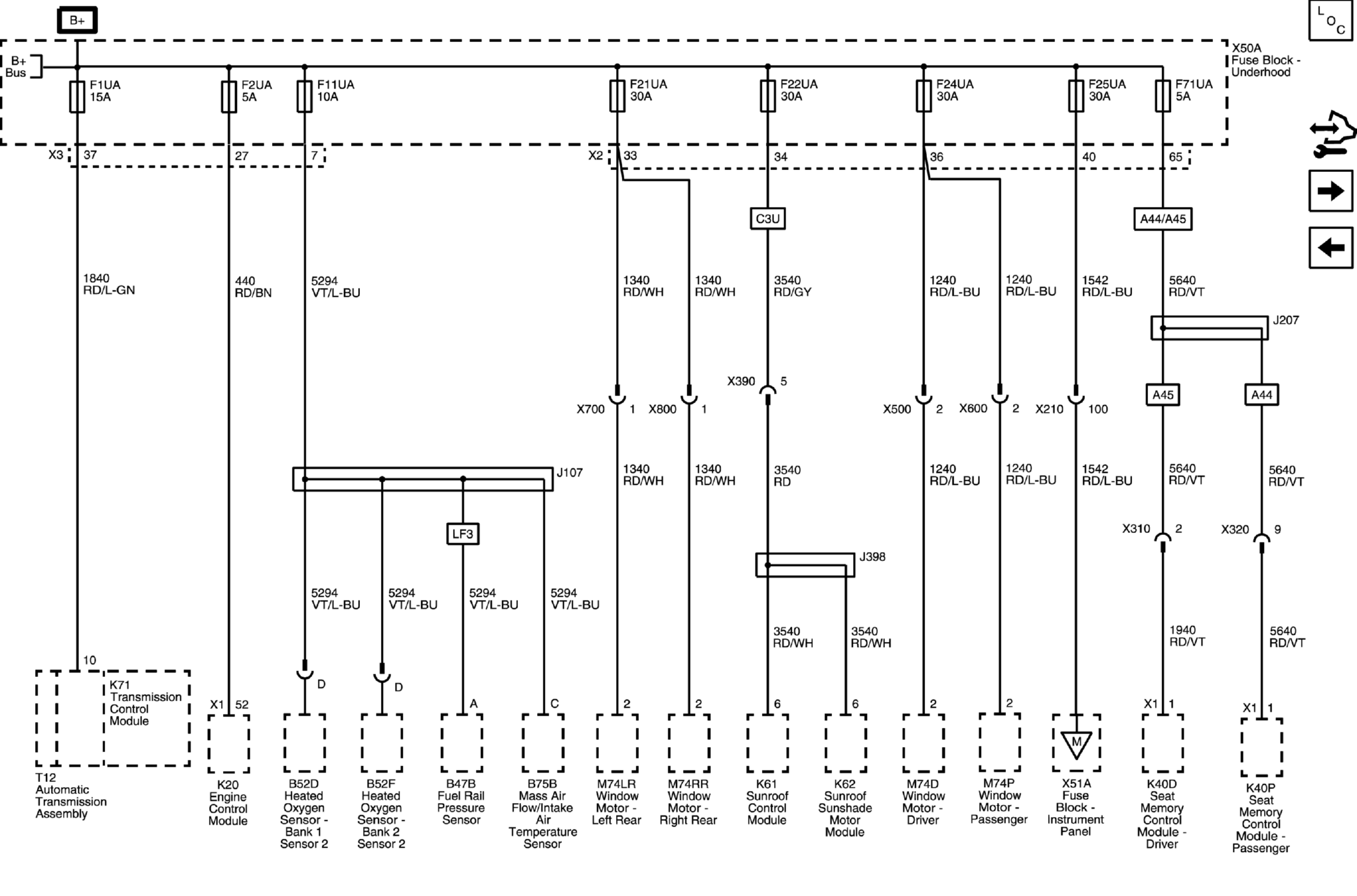

F1UA, F2UA, F21UA, F22UA, F24UA, F25UA and F71UA Fuses

GM4733488

Courtesy of GENERAL MOTORS COMPANY
