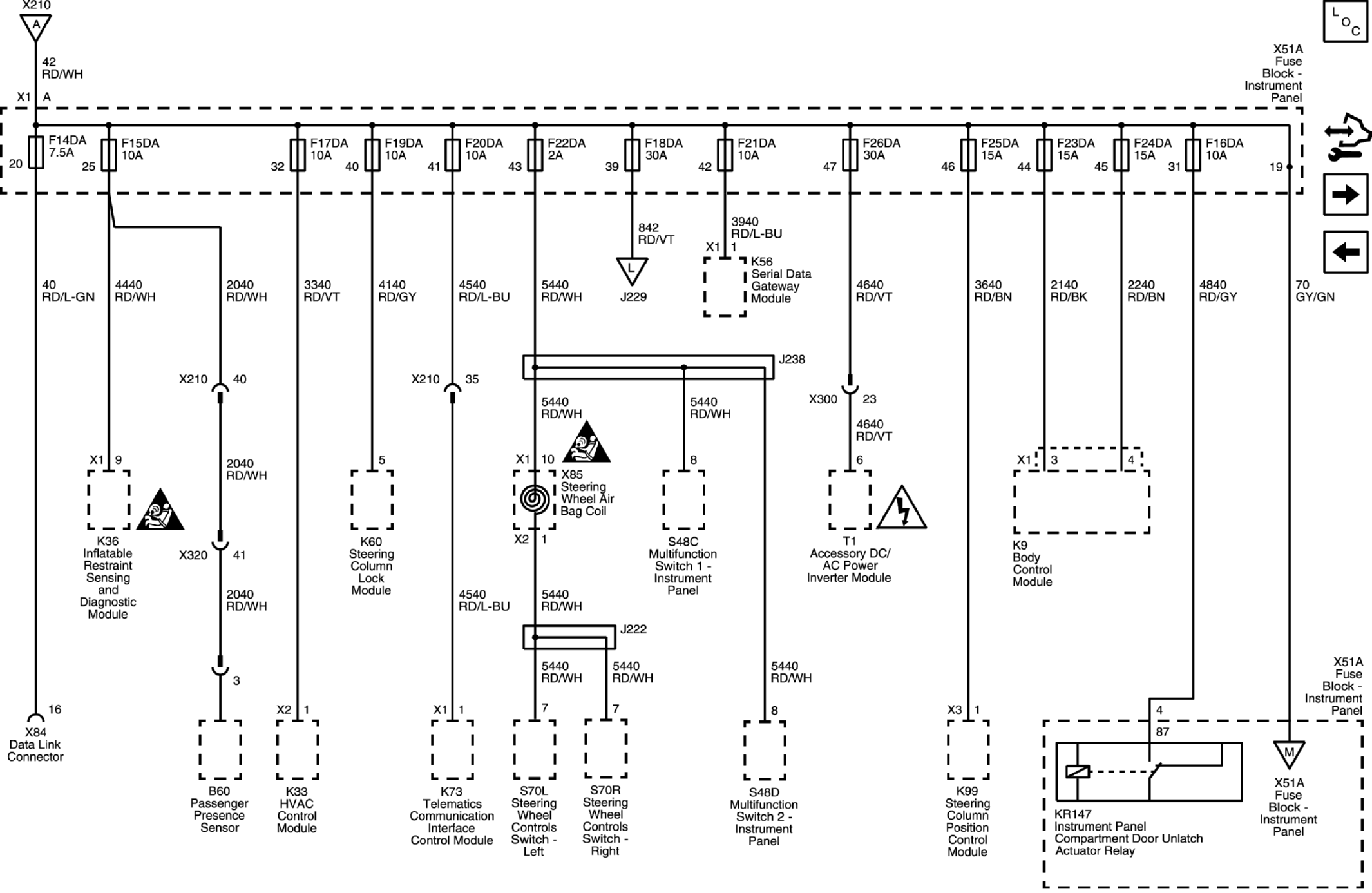

F14DA, F15DA, F16DA, F17DA, F18DA, F19DA, F20DA, F21DA, F22DA, F23DA, F24DA, F25DA and F26DA Fuses

GM4733513

Courtesy of GENERAL MOTORS COMPANY
