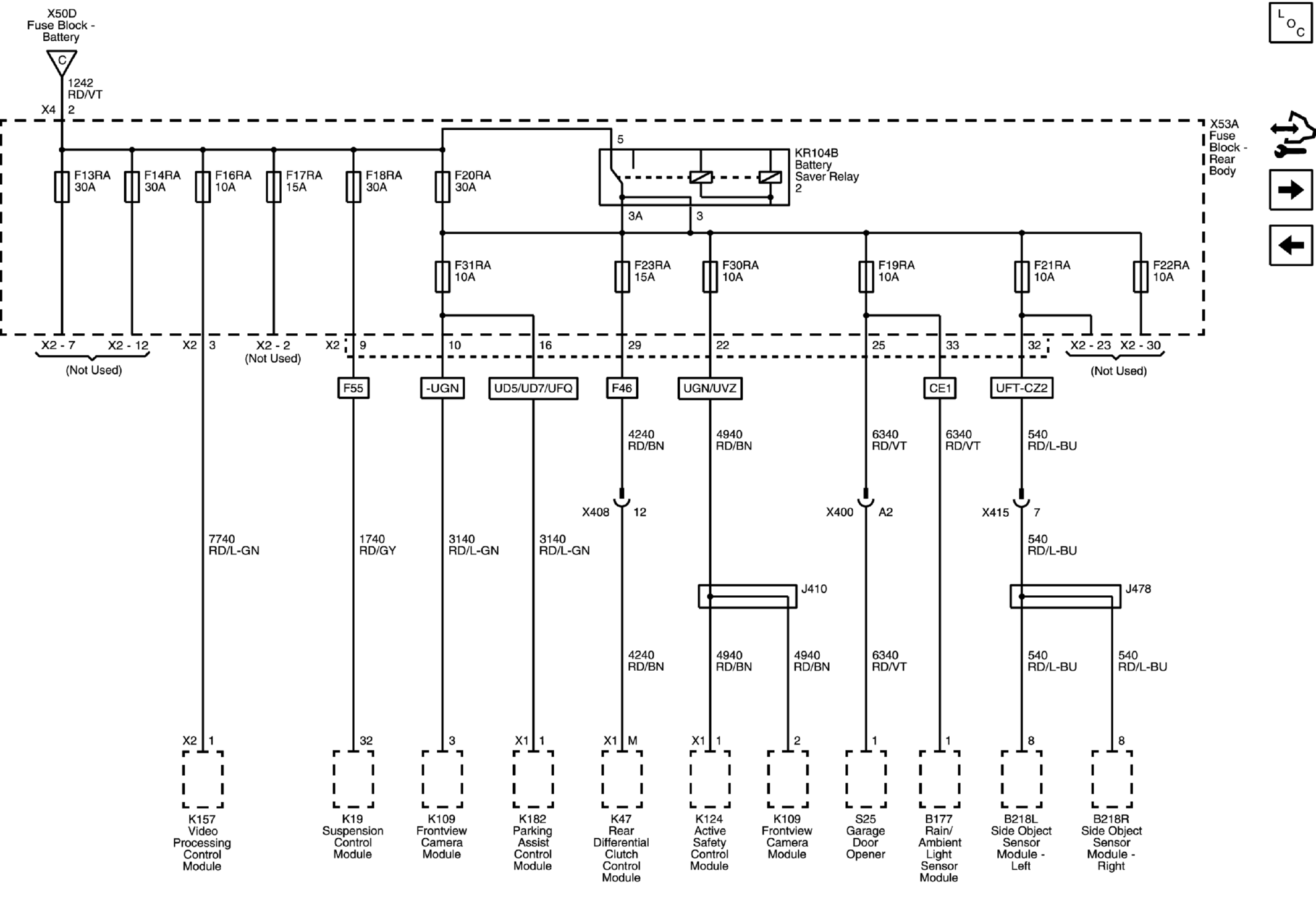

F13RA, F14RA, F16RA, F17RA, F18RA, F19RA, F20RA, F21RA, F22RA, F23RA, F30RA and F31RA Fuses

GM4733533

Courtesy of GENERAL MOTORS COMPANY
