Home >> Cadillac >> 2018 >> XTS Livery >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Diagrams >> Ground Distribution Wiring Schematics >> G302

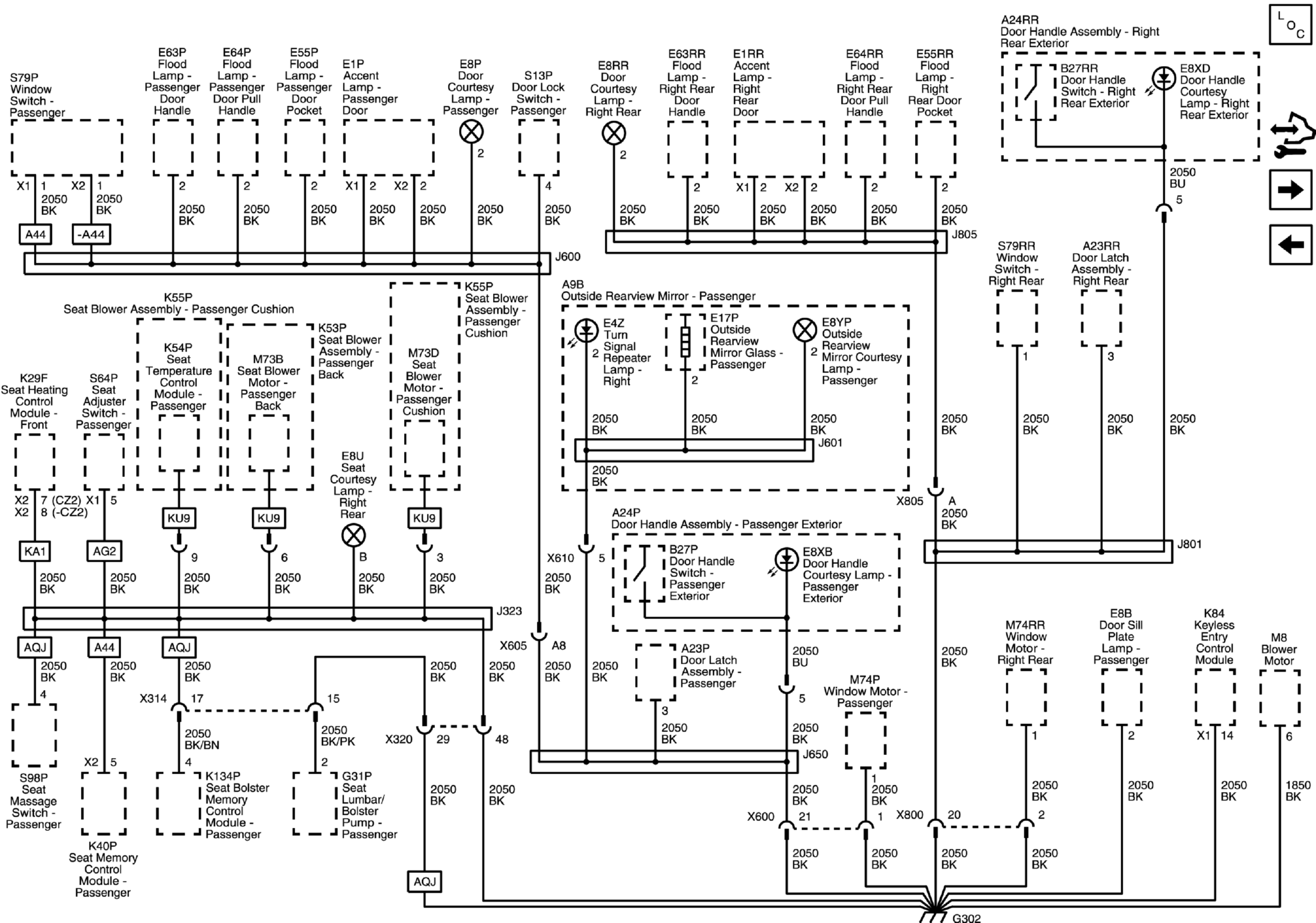

Ground Distribution Wiring Schematics: G302

GM4733597Courtesy of GENERAL MOTORS COMPANY
