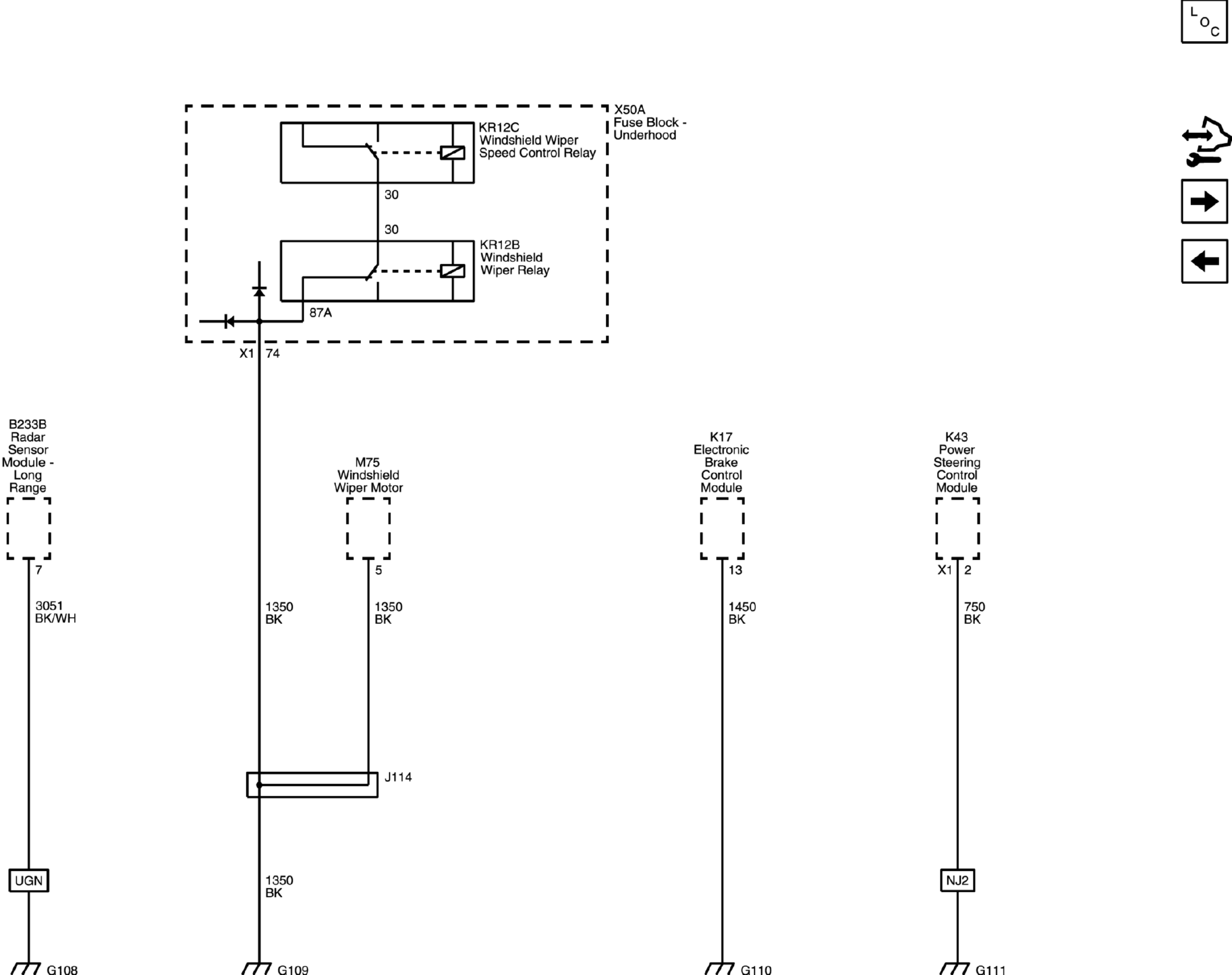

Home >> Cadillac >> 2018 >> XTS Livery >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing Diagrams >> Ground Distribution Wiring Schematics >> G108, G109, G110 and G111
