Underbody Front Air Deflector Replacement - Right Side

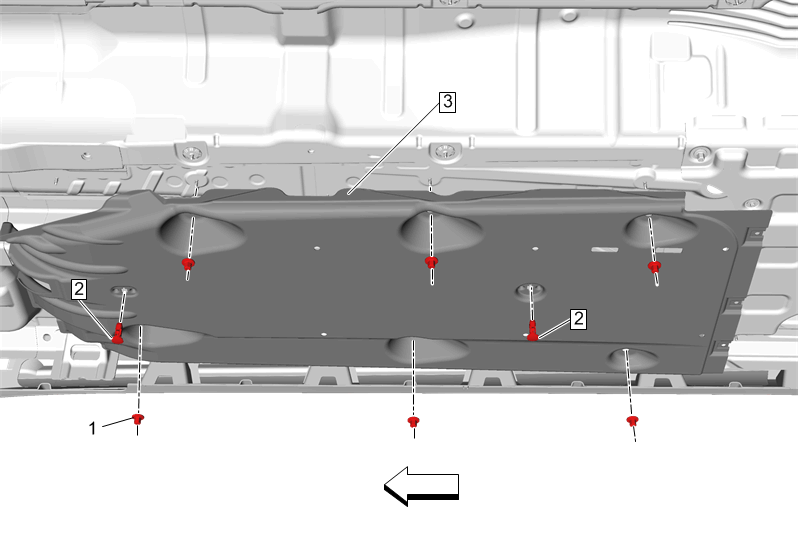

GM4580298
Callout Component Name
WARNING:

Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death.

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  2. Underbody Rear Air Deflector Replacement - Right Side (AWD) .
1 Underbody Front Air Deflector Nut [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Retainer [2x]
3 Underbody Front Air Deflector
