Underbody Front Air Deflector Replacement - Left Side

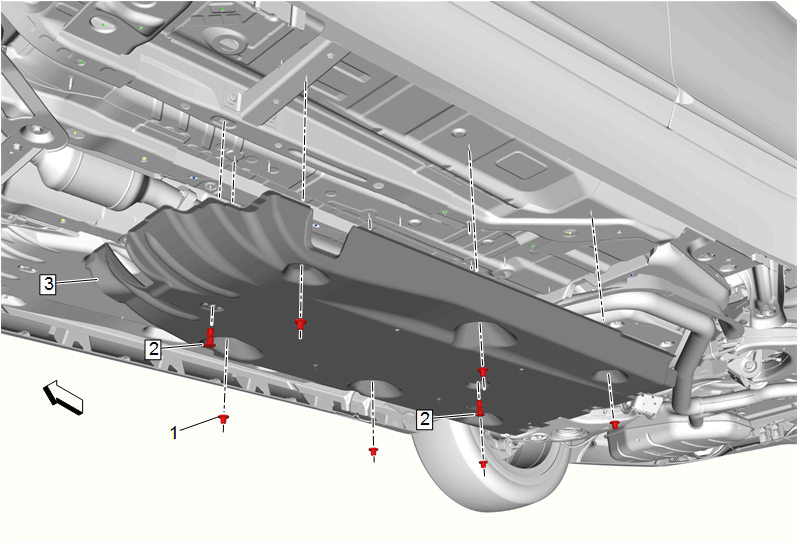

| Callout | Component Name |
|---|---|
| Preliminary Procedure Underbody Rear Air Deflector Replacement - Left Side (AWD) |
|
| 1 | Underbody Front Air Deflector Nut [6x]
CAUTION:
Refer to Fastener Caution Tighten 3 N.m (27 lb in) |
| 2 | Underbody Front Air Deflector Retainer [2x] |
| 3 | Underbody Front Air Deflector |
