Instrument Panel Insulator Panel Replacement - Left Side

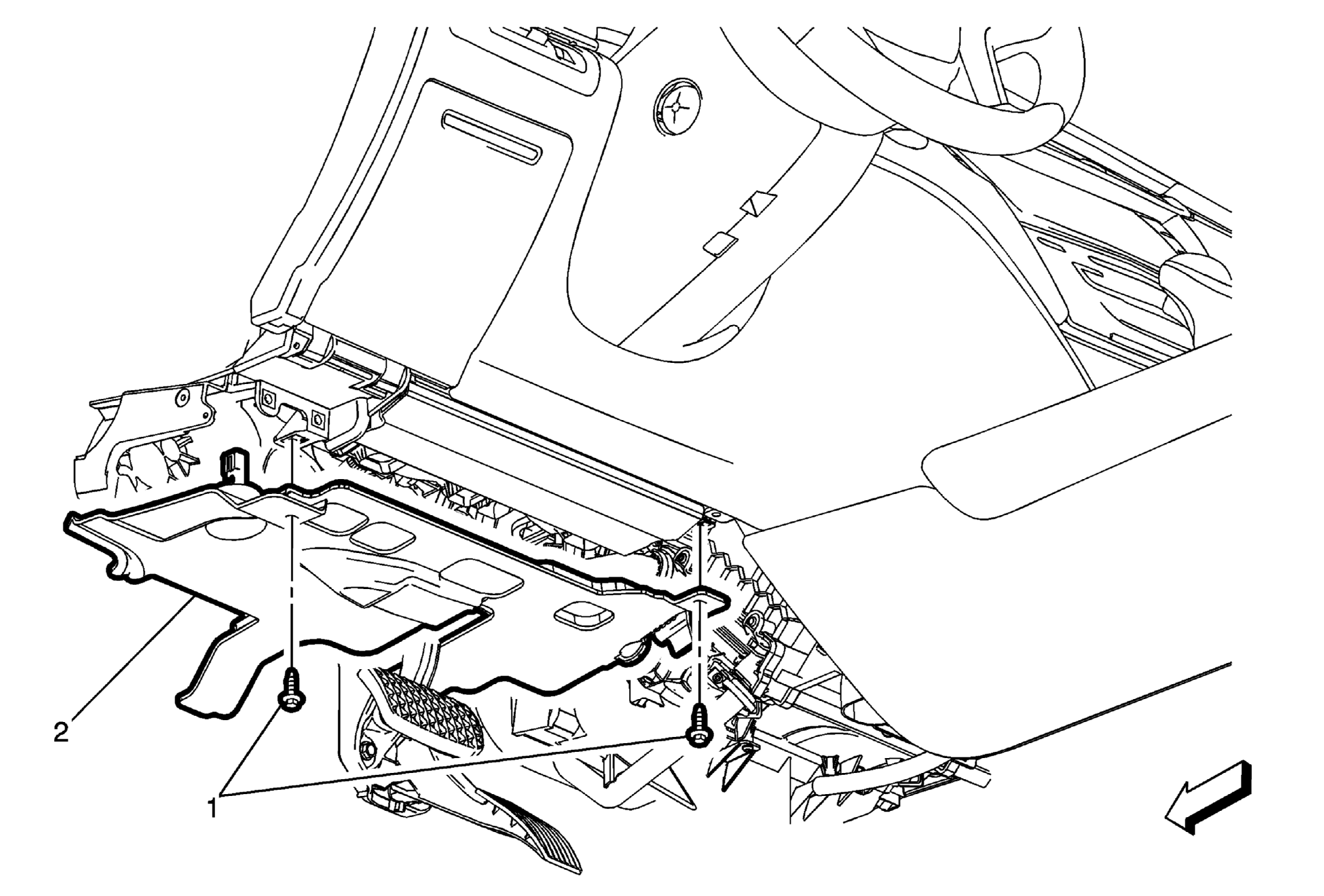

GM2753834
Callout Component Name
1 Instrument Panel Insulator Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Insulator Panel - Left Side

Procedures

  1. Disconnect the electrical connections.
  2. When replacing the insulator panel, transfer all necessary components.
