Headlamp LED Driver Module Replacement (Daytime Running Lamp/Turn Signal)

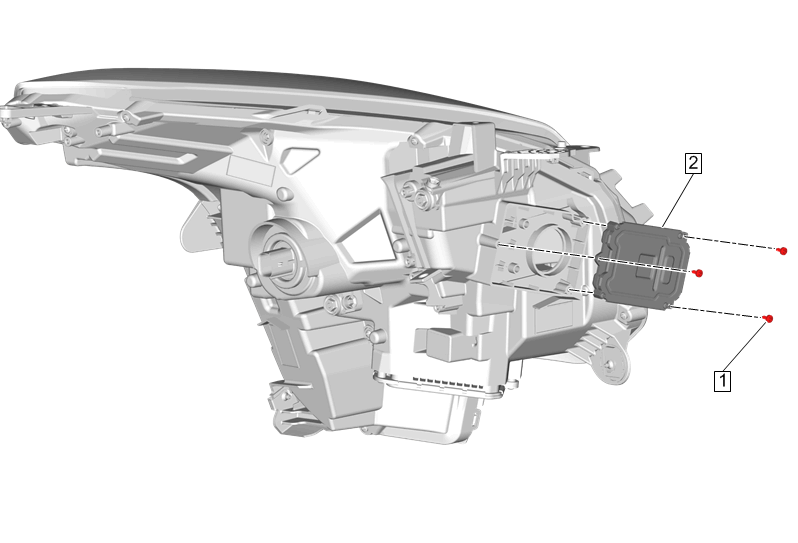

There are two LED Drivers mounted on each headlamp housing. There is a smaller one that is mounted on the inboard side of the headlamp facing the centerline of the vehicle. This one is the for daytime running lamp (DRL) and the park/turn signal lamp. There is a larger LED Driver mounted on the bottom of the headlamp. This one is for the high beam and low beam headlamp. When servicing the LED Driver, be sure to identify the correct component.
