Headlamp LED Driver Module Replacement (Daytime Running Lamp)

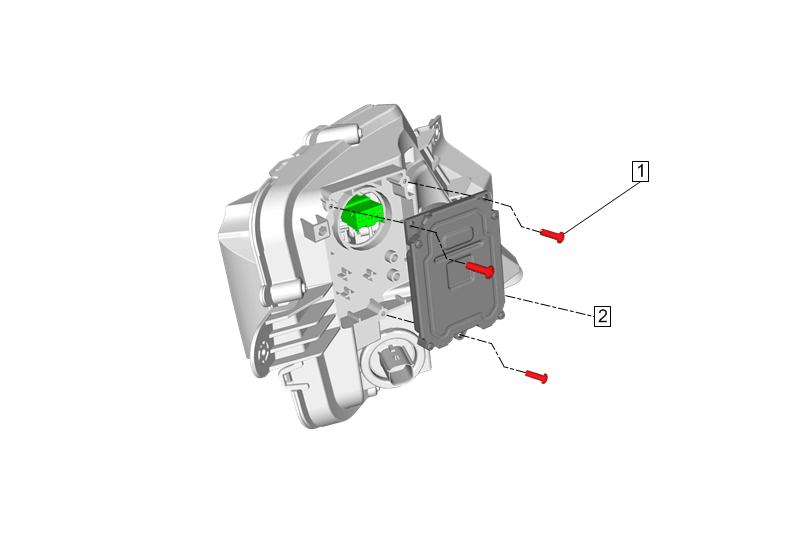

| Callout | Component Name |
|---|---|
| Preliminary Procedure Daytime Running Lamp Replacement |
|
| 1 | Headlamp LED Driver Module Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Headlamp LED Driver Module Procedure Disconnect the electrical connector.
NOTE:
There are three different types of headlamp LED modules associated with the vehicle. There are two attached to each headlamp and one attached to each daytime running lamp. This procedure requires the removal of the daytime running lamp. |
