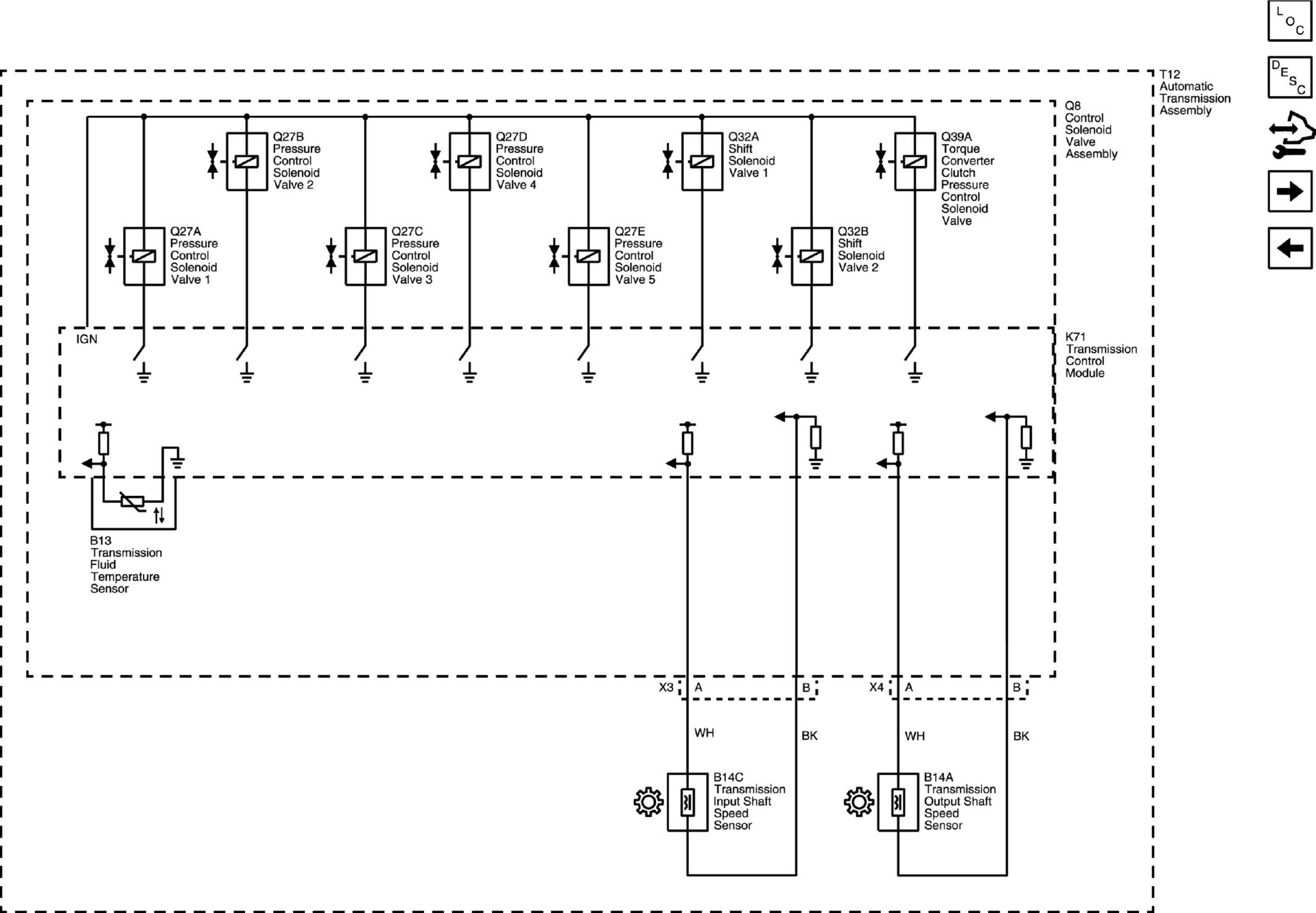

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

GM4733982Courtesy of GENERAL MOTORS COMPANY
