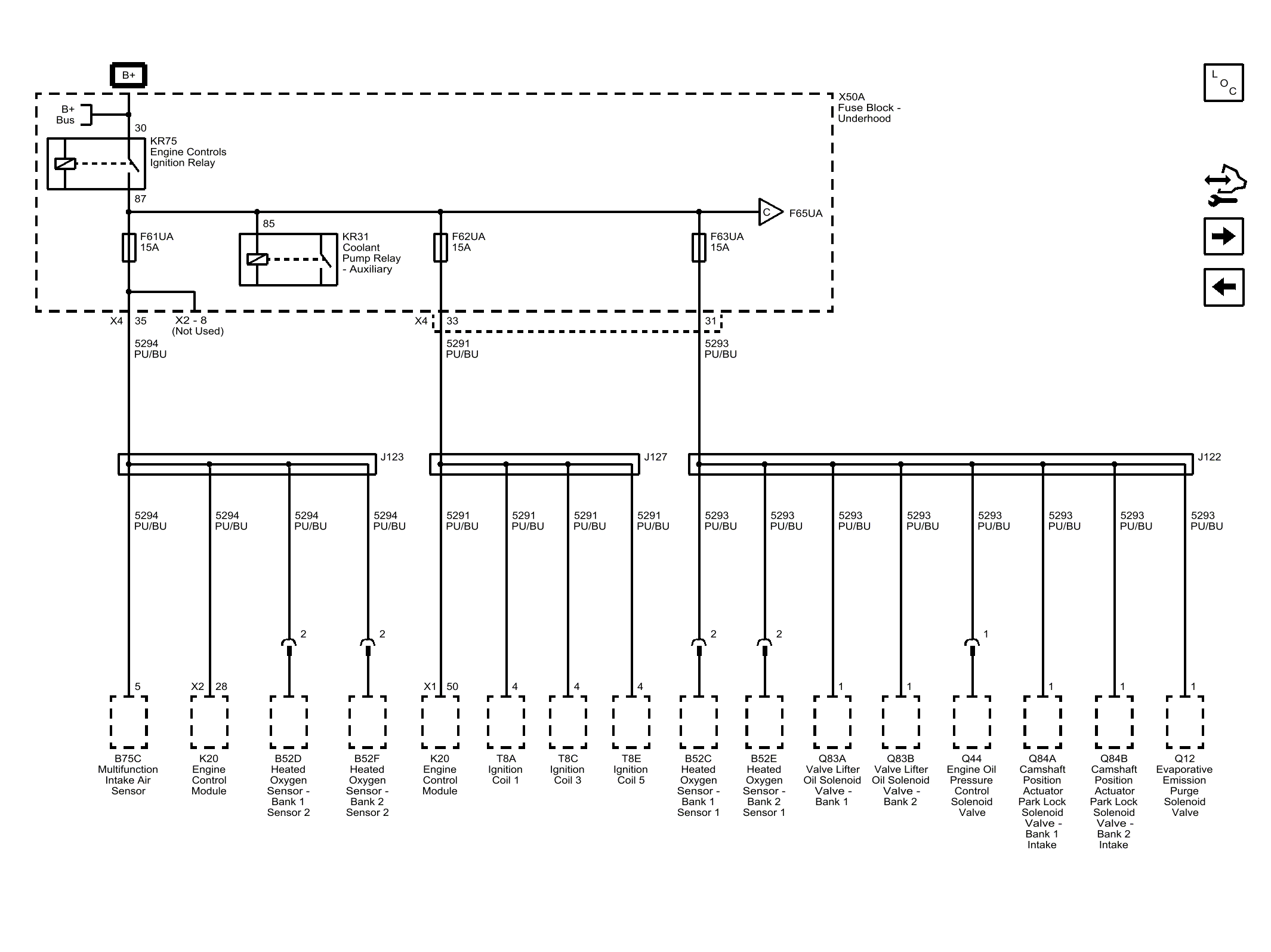

Home >> Cadillac >> 2018 >> XT5 Platinum >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> F61UA, F62UA, and F63UA Fuses
