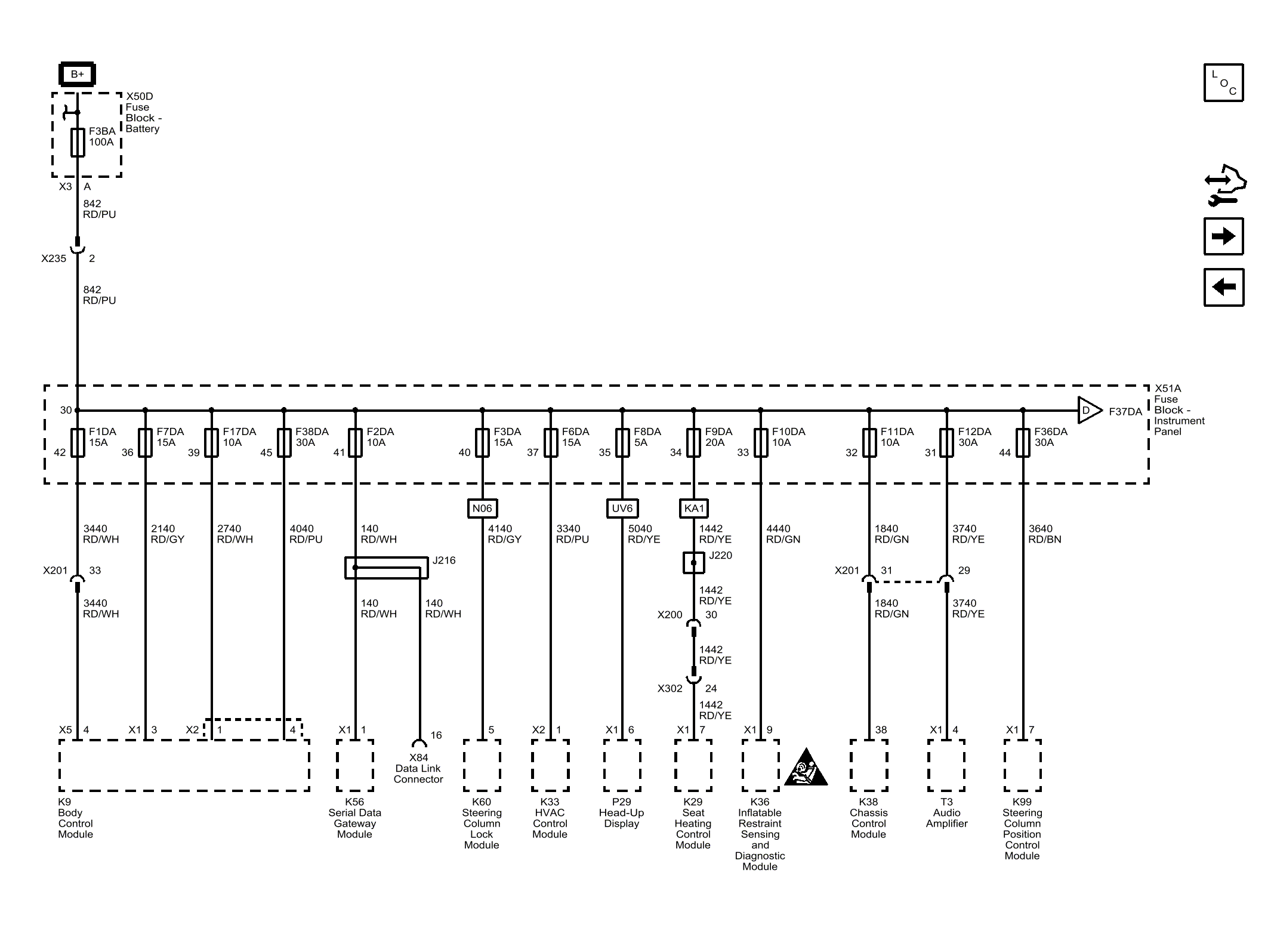

F3BA, F1DA, F2DA, F3DA, F6DA F7DA, F8DA, F9DA, F10DA, F11DA, F12DA, F17DA, F36DA, and F38DA Fuses

GM4664003

Courtesy of GENERAL MOTORS COMPANY
