Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>

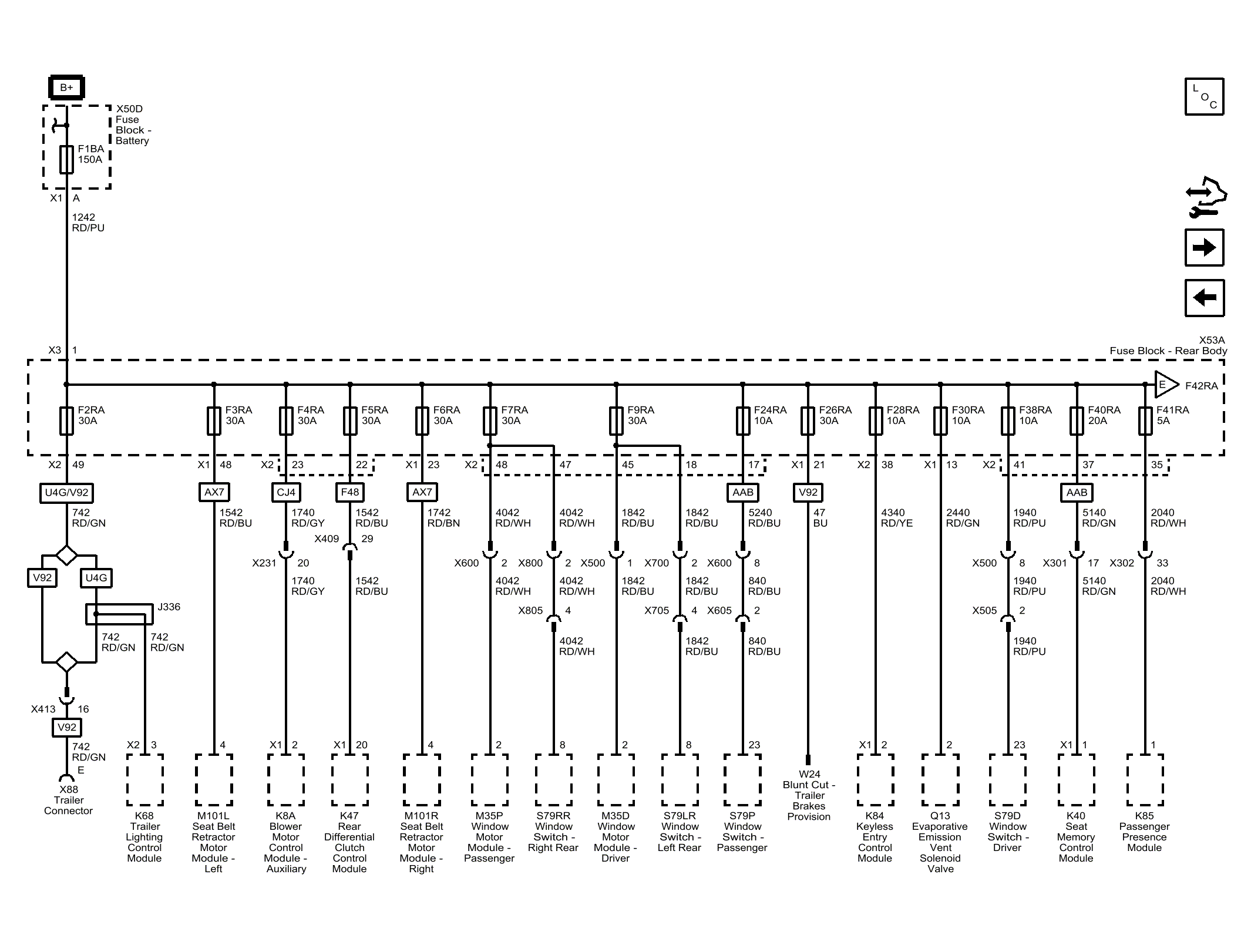

F1BA, F2RA, F3RA, F4RA, F5RA, F6RA, F7RA, F9RA, F24RA, F26RA, F28RA, F30RA, F38RA, F40RA, and F41RA Fuses
F1BA, F2RA, F3RA, F4RA, F5RA, F6RA, F7RA, F9RA, F24RA, F26RA, F28RA, F30RA, F38RA, F40RA, and F41RA Fuses
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
