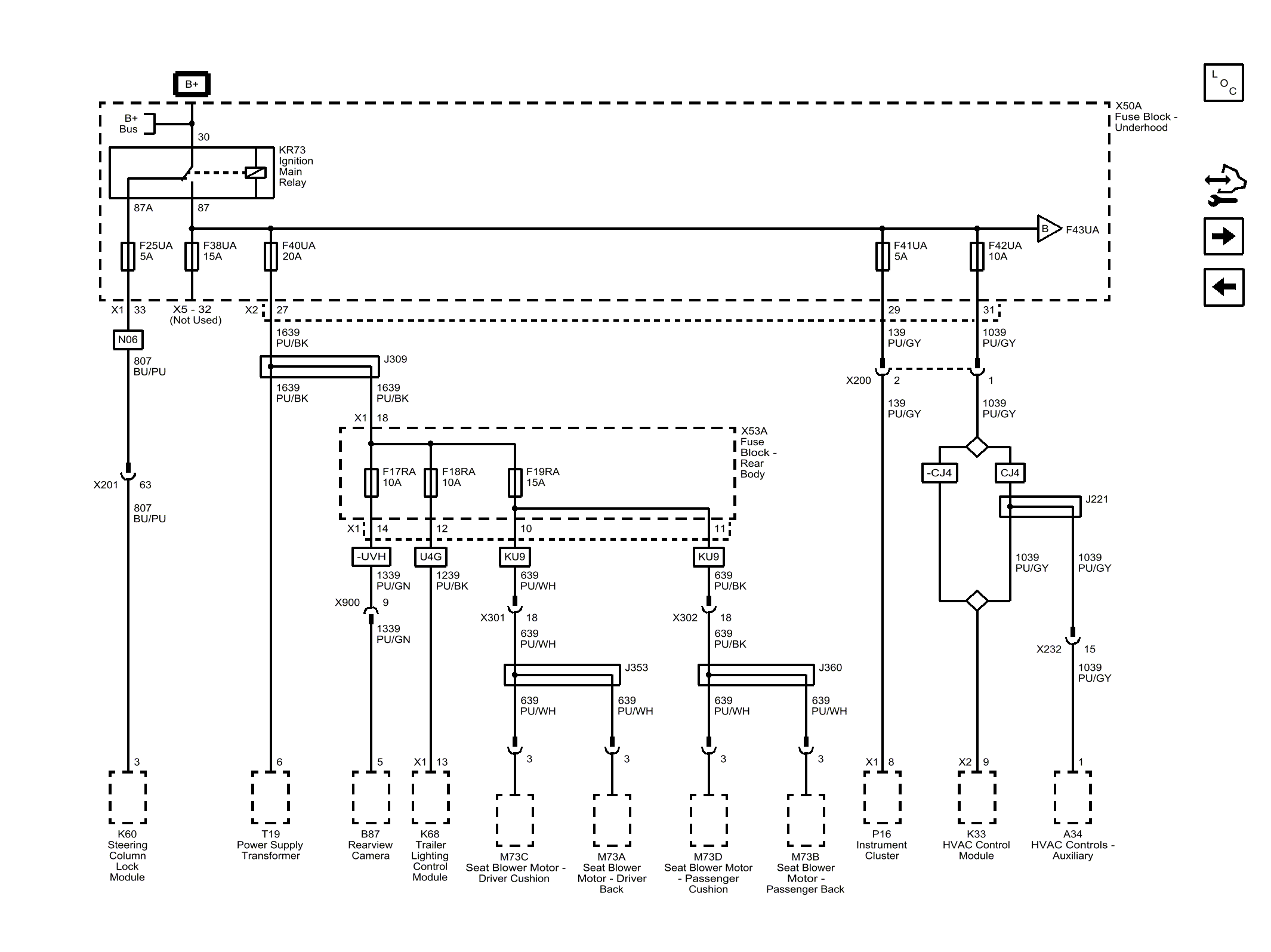

F17RA, F18RA, F19RA, F25UA, F38UA, F40UA, F41UA, and F42UA Fuses

GM4663998

Courtesy of GENERAL MOTORS COMPANY
