Body Wiring Harness Junction Block Replacement

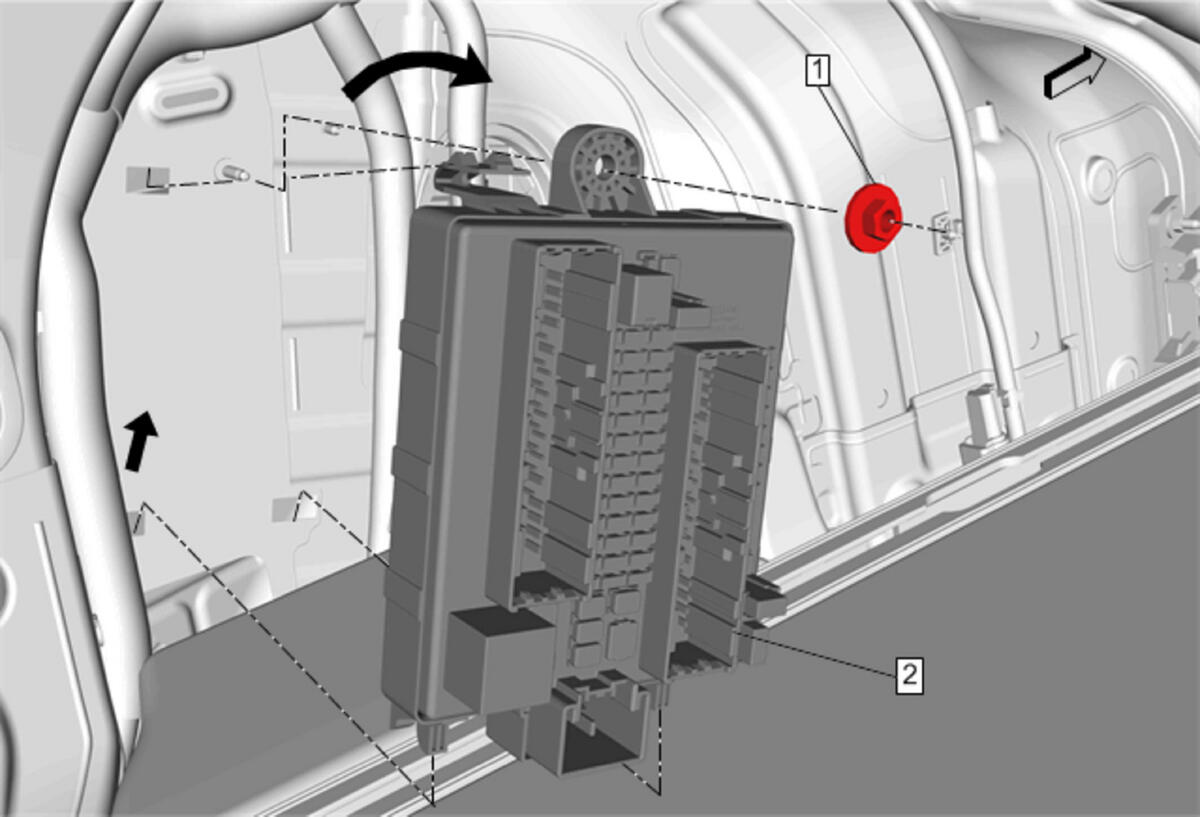

GM4296606Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection .
  2. Quarter Lower Rear Trim Panel Replacement (Right Side)Quarter Lower Rear Trim Panel Replacement (Left Side)
1 Body Wiring Harness Junction Block Nut
CAUTION:

Refer to Fastener Caution .


Tighten9 N.m (80 lb in)
2 Body Wiring Harness Junction Block

Procedure

  1. Disconnect all electrical connectors.
  2. Release the top retainer, tip the fuse block forward and down and pull the fuse block up out of the rear inner quarter panel.
