Roof Rail Rear Assist Handle Replacement

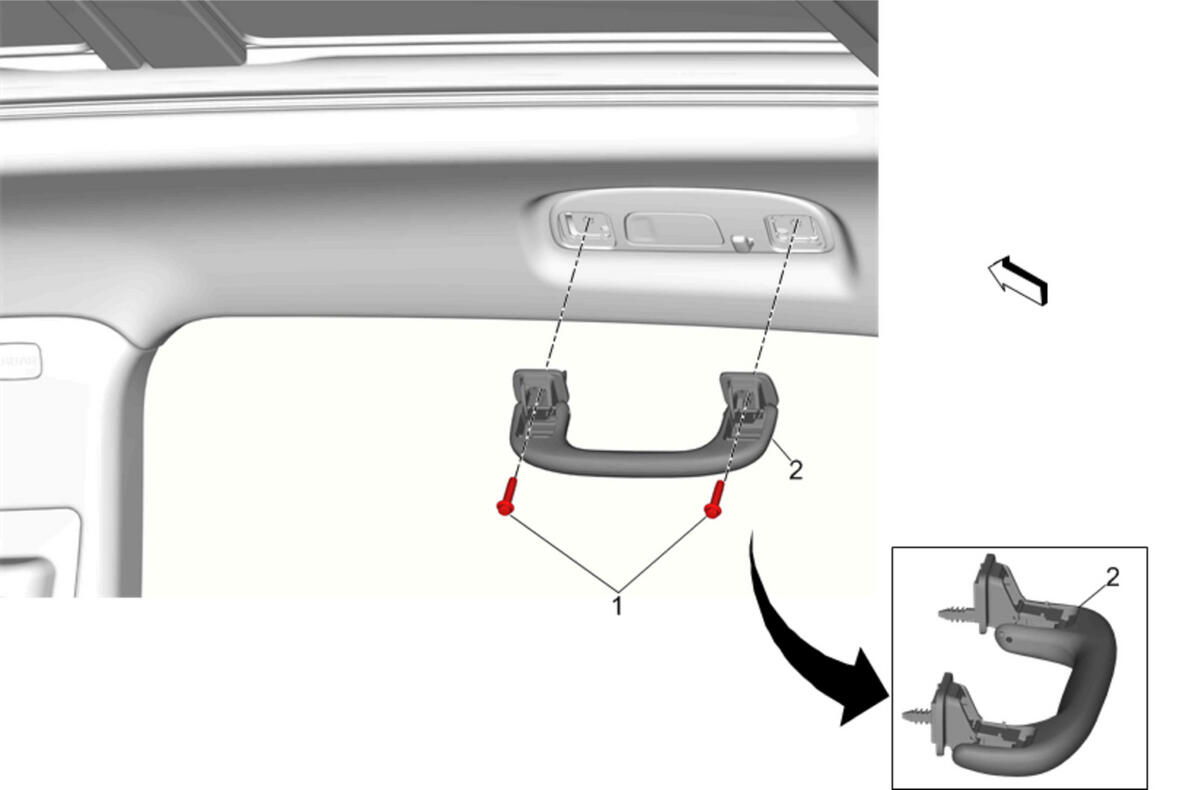

Callout	Component Name
1	Roof Rail Assist Handle Fastener [2x] CAUTION: Refer to:Fastener Caution . Procedure Fold the assist handle downward and hold. Use a small flat-bladed tool to open the assist handle covers to access the screws. Tighten 6 N.m (53 lb in)
2	Roof Rail Rear Assist Handle Procedure Use a flat bladed plastic tool to remove.

Callout

Component Name

Roof Rail Assist Handle Fastener [2x]

CAUTION:

Procedure

Fold the assist handle downward and hold.
Use a small flat-bladed tool to open the assist handle covers to access the screws.

Tighten
6 N.m (53 lb in)

Roof Rail Rear Assist Handle
Procedure
Use a flat bladed plastic tool to remove.
