Rear Side Door Pull Handle Bracket Replacement

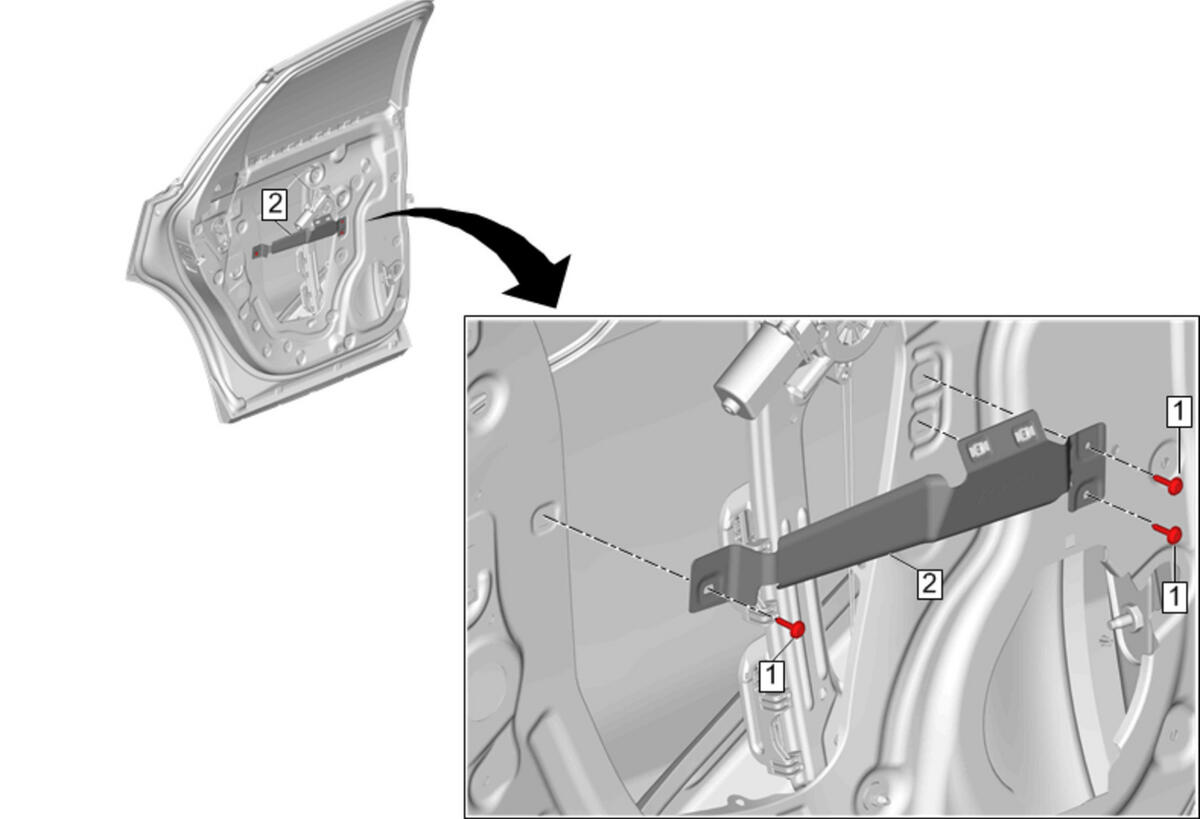

GM4311021
Callout Component Name
Preliminary Procedure
Rear Side Door Trim Replacement
1 Rear Side Door Armrest Bracket Fastener [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Side Door Pull Handle Bracket
Procedure
Reposition water deflector, as necessary.
