Rear End Spoiler Replacement

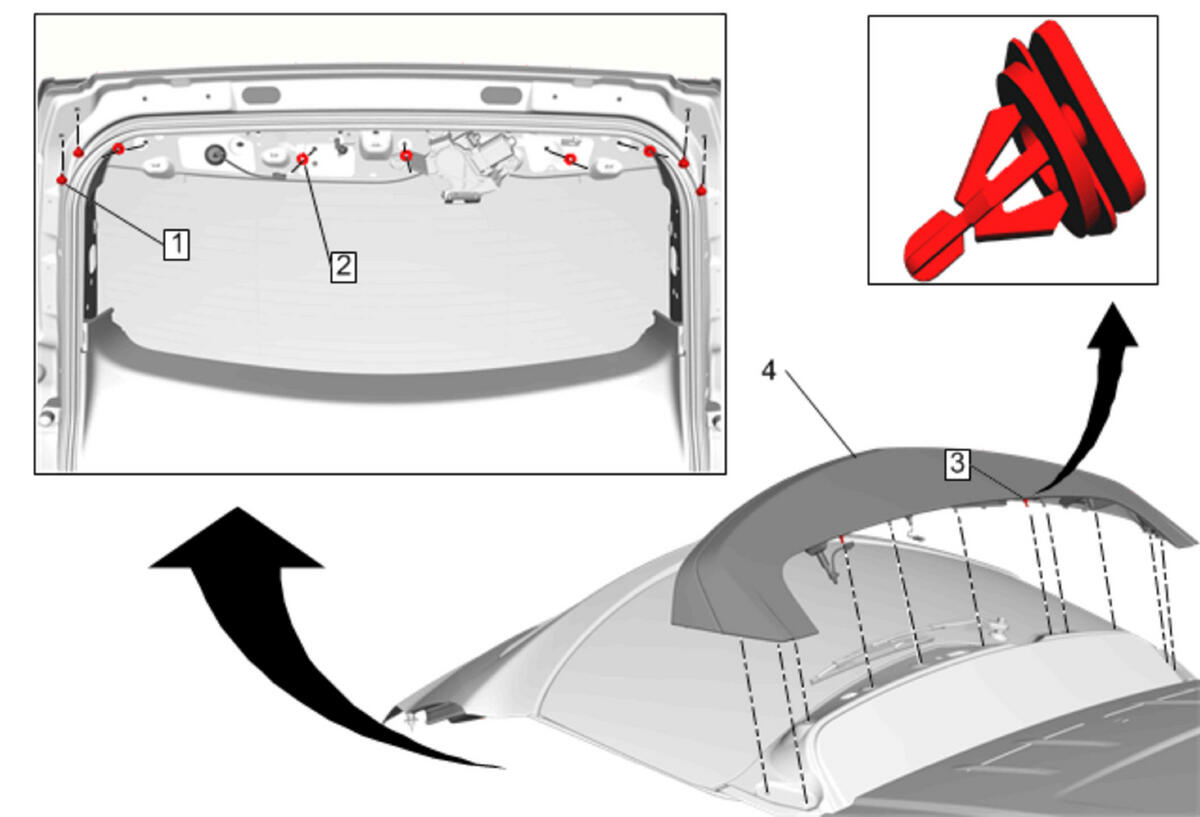

GM4299032
Callout Component Name

Preliminary Procedures

  1. Open and support the liftgate.
  2. Liftgate Upper Trim Finish Panel Replacement
1 Rear End Spoiler Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
4.7 N.m (42 lb in)
2 Rear End Spoiler Nut [5x]
Tighten
4.7 N.m (42 lb in)
3 Rear End Spoiler Retainer [2x]
4 Rear End Spoiler

Procedure

  1. Using the appropriate tool, release the 2 rear end spoiler retainers.
  2. Disconnect the electrical connector.
  3. Disconnect the rear window washer hose from the rear window washer nozzle.
  4. Remove the rear end spoiler.
  5. Transfer components as necessary.
