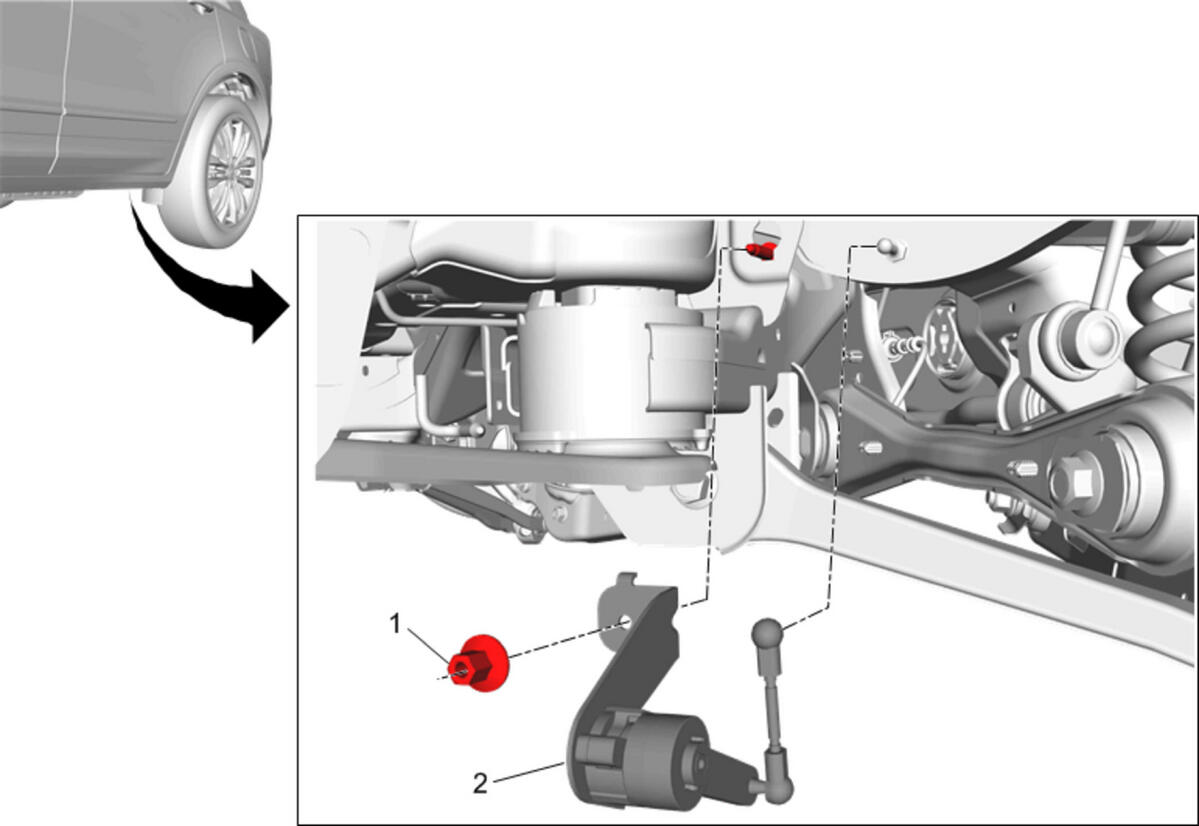

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Replacement

Callout	Component Name
Preliminary Procedure Raise the vehicle. Lifting and Jacking the Vehicle
1	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Suspension Automatic Forward Lighting Leveling Position Sensor Procedure Disconnect the electrical connector. Using a suitable tool, separate the ball and socket.

Callout

Component Name

Preliminary Procedure
Raise the vehicle. Lifting and Jacking the Vehicle

Rear Suspension Automatic Forward Lighting Leveling Position Sensor Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Suspension Automatic Forward Lighting Leveling Position Sensor

Procedure
