Rear Side Door Inside Handle Illumination Lamp Replacement

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement

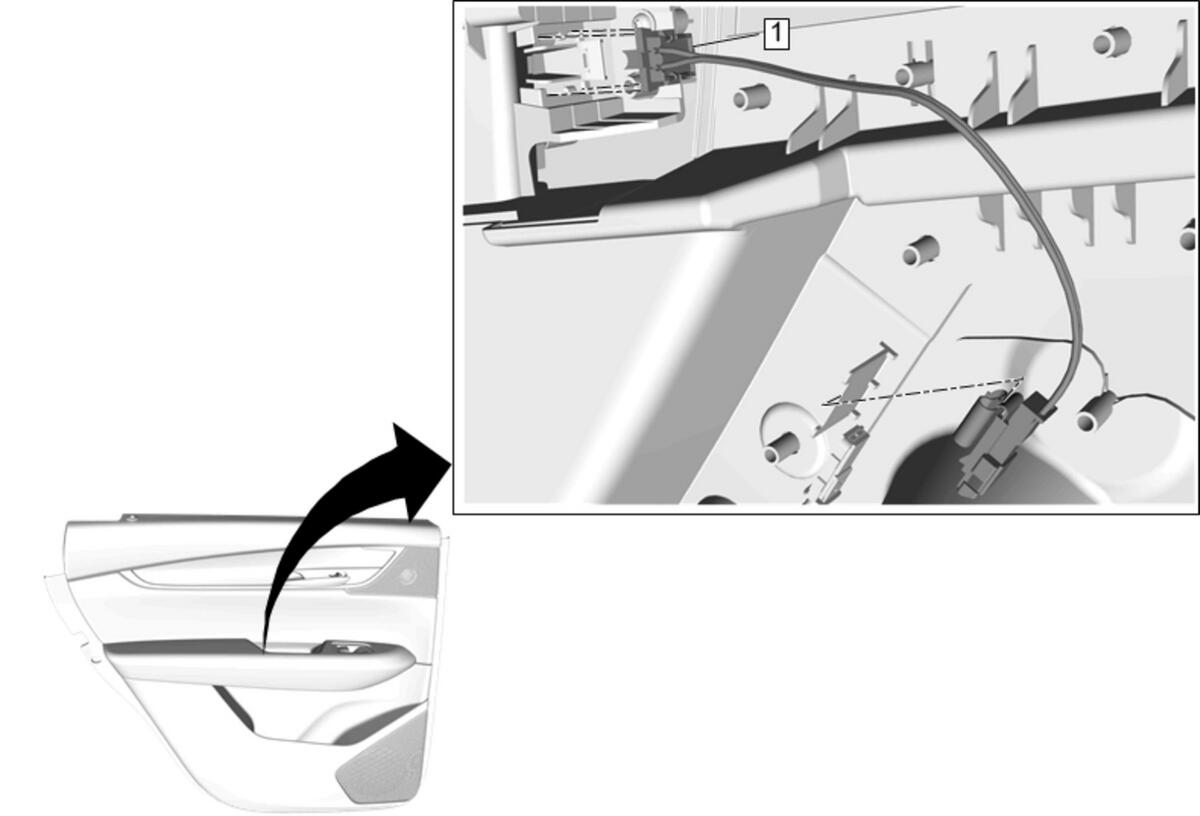

1	Rear Side Door Inside Handle Illumination Lamp Procedure Note the location and routing of the lamp prior to removal to ensure proper installation. Disconnect the electrical connector. Reposition the rear side door trim insulator panel, if needed. Unsnap lamp from trim panel tabs.

Callout

Component Name

Rear Side Door Inside Handle Illumination Lamp

Procedure

Note the location and routing of the lamp prior to removal to ensure proper installation.
Disconnect the electrical connector.
Reposition the rear side door trim insulator panel, if needed.
Unsnap lamp from trim panel tabs.
