Rear License Plate Lamp Replacement (With DRZ, UVH)

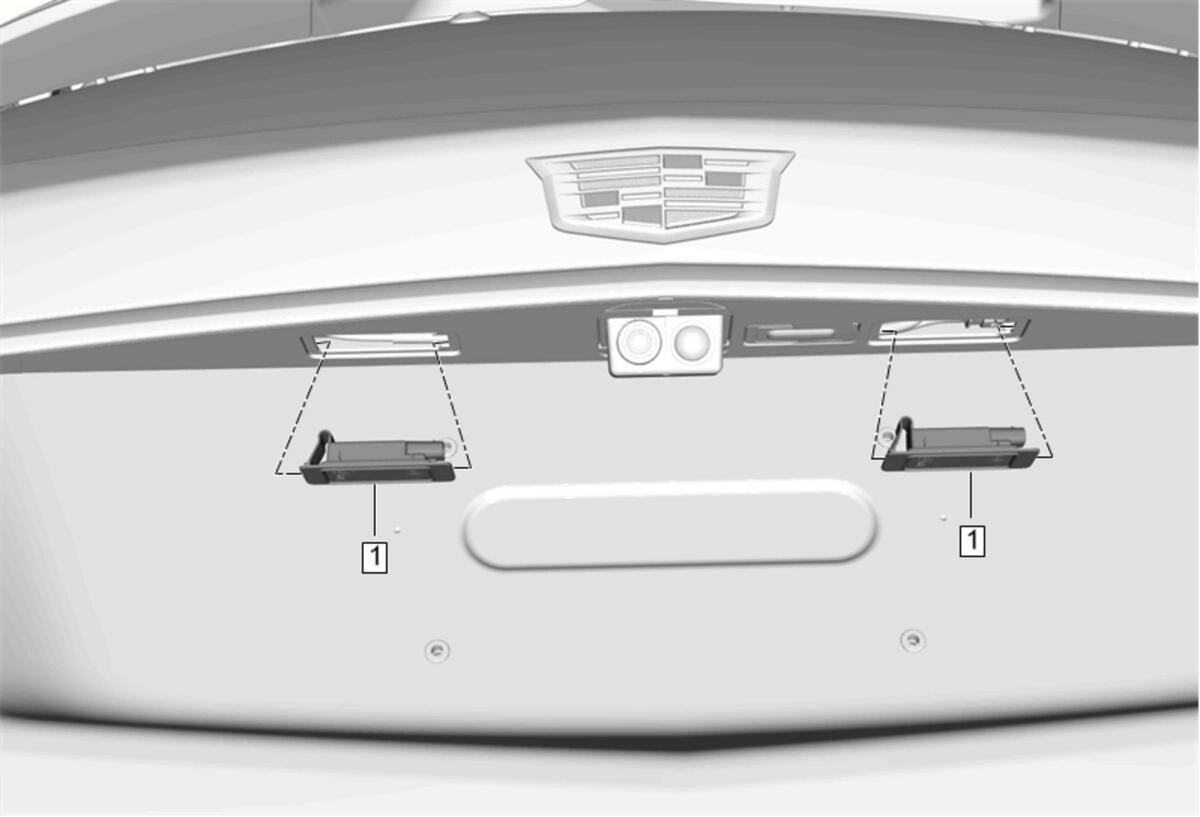

GM4374118
Callout Component Name
1 Rear License Plate Lamp

Procedure

  1. Using the appropriate tool, compress the left end of the rear license plate lamp and release the rear license plate lamp from the liftgate.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
