Rear Fascia Lower Signal Lamp Replacement

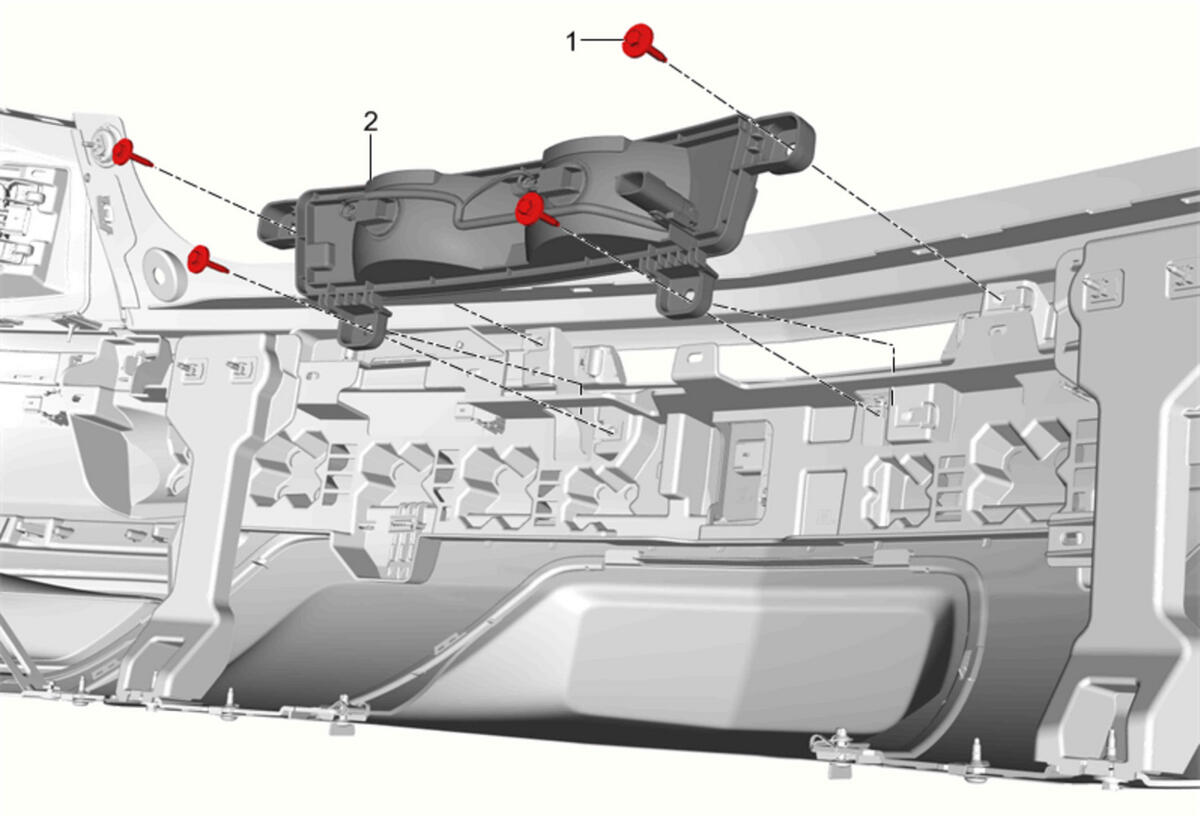

GM4295889
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement
1 Rear Fascia Lower Signal Lamp Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Fascia Lower Signal Lamp
Procedure
Disconnect the electrical connector.
