Rear Body Structure Stop Lamp Replacement

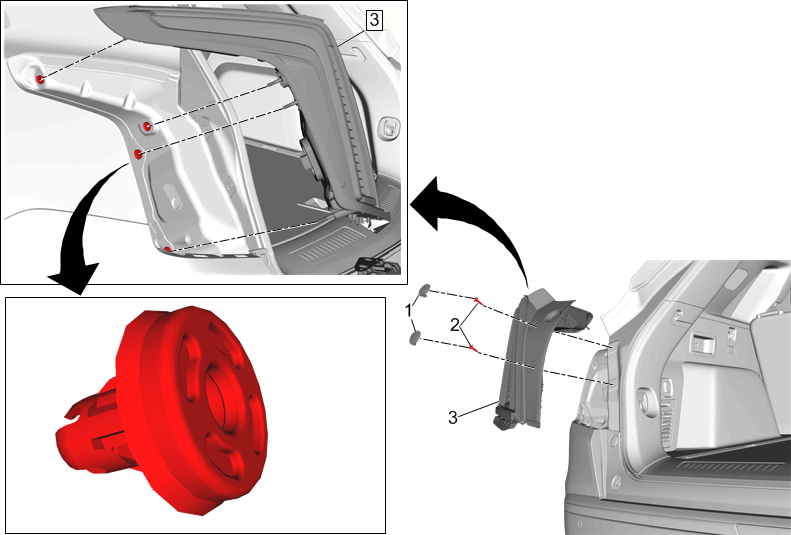

GM4288613
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Replacement
1 Rear Body Structure Stop Lamp Cover [2x]
2 Rear Body Structure Stop Lamp Screw [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Rear Body Structure Stop Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Release the retainers.
  3. Using appropriate tool, gently pry lamp from body side outer frame.
NOTE:

Install NEW retainers. Do NOT reuse old retainers.
