Headlamp Bulb Replacement

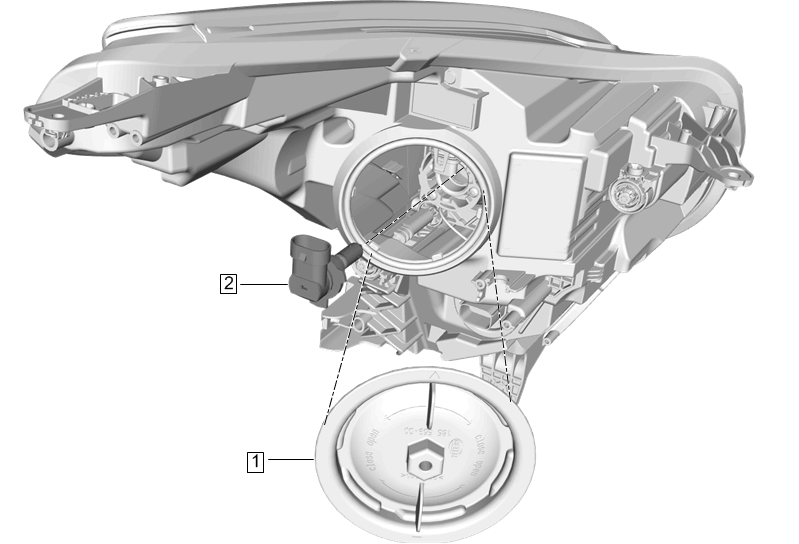

GM4296394
Callout Component Name
Preliminary Procedure
Headlamp Replacement
1 Headlamp Bulb Access Cover
Procedure
Rotate the headlamp bulb access cover counterclockwise and pull from the headlamp.
2 Headlamp Bulb
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the bulb socket counterclockwise to remove it from the lamp housing.
