Front Suspension Automatic Forward Lighting Position Sensor Replacement

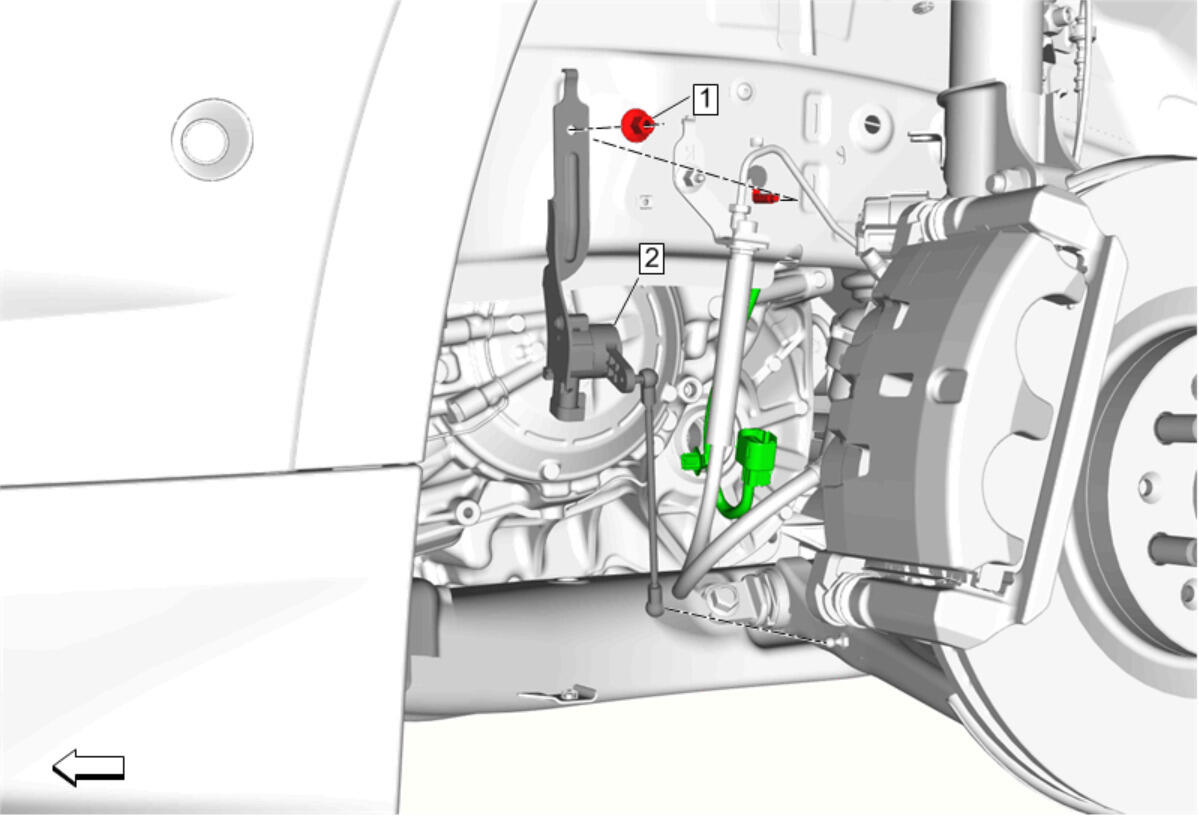

GM4309806
Callout Component Name
Preliminary Procedure
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation .
1 Front Suspension Automatic Forward Lighting Position Sensor Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Suspension Automatic Forward Lighting Position Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Using a suitable tool, separate the ball and socket.
