Front Floor Courtesy Lamp Replacement (Passenger Side)

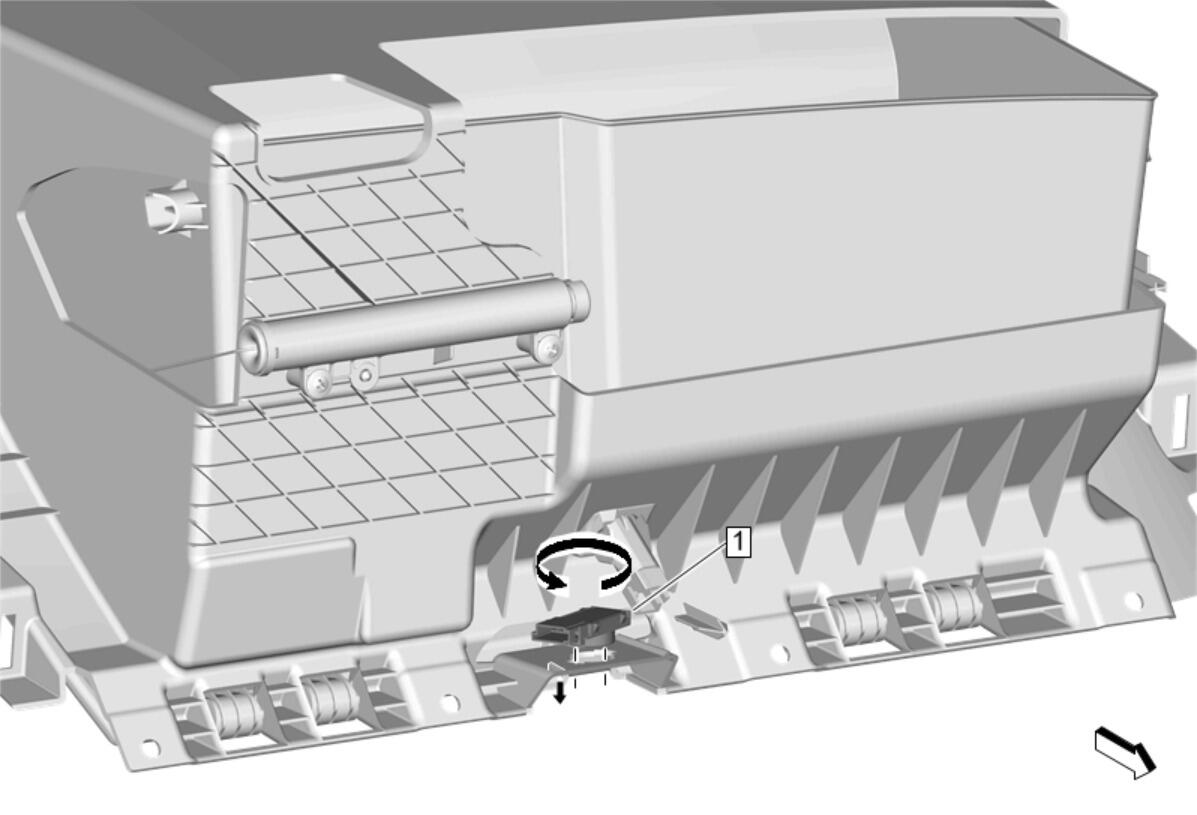

GM4281610
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Front Floor Courtesy Lamp

Procedure

  1. Release the retaining tab.
  2. Rotate the lamp a quarter turn counterclockwise and remove.
