Front Floor Courtesy Lamp Replacement (Driver Side)

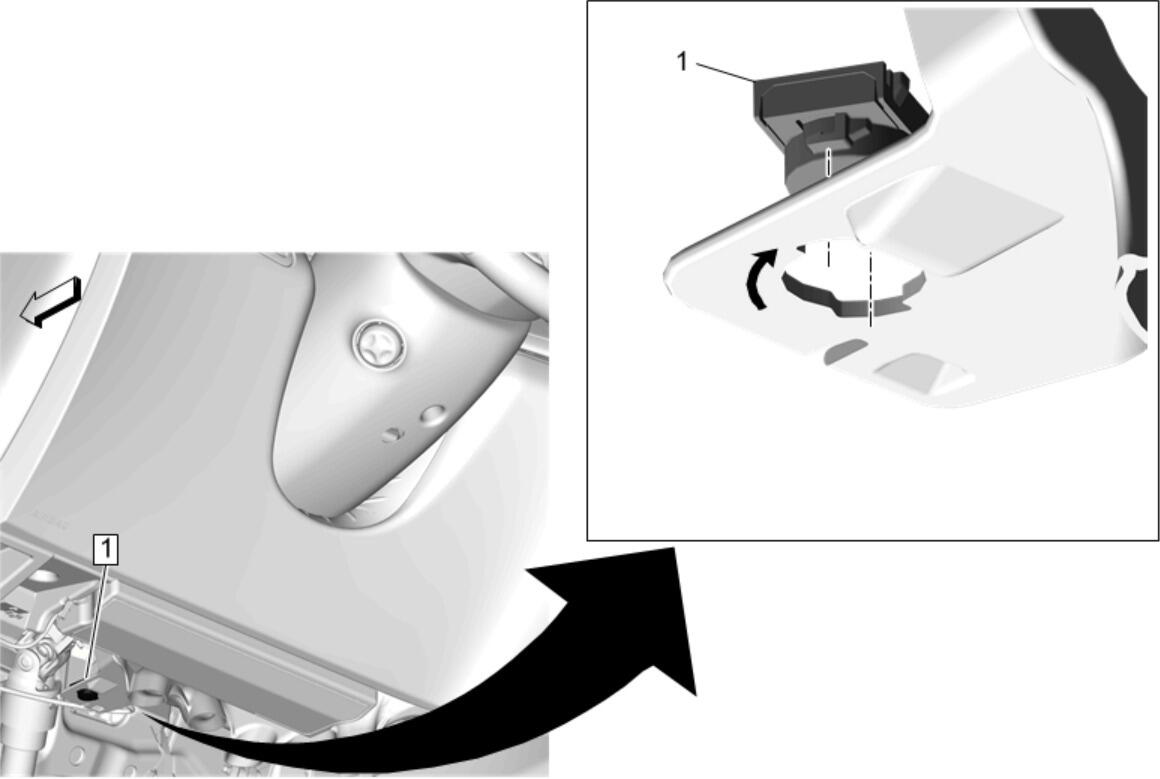

GM4281478
Callout Component Name
Preliminary Procedure
Instrument Panel Insulator Replacement - Left Side
1 Front Floor Courtesy Lamp

Procedure

  1. Turn as indicated to release the lamp.
  2. Disconnect the electrical connector.
