Front Floor Console Flexible Light Tube Replacement (Left Side)

Callout	Component Name
Preliminary Procedure Front Floor Console Side Trim Panel Replacement - Left Side

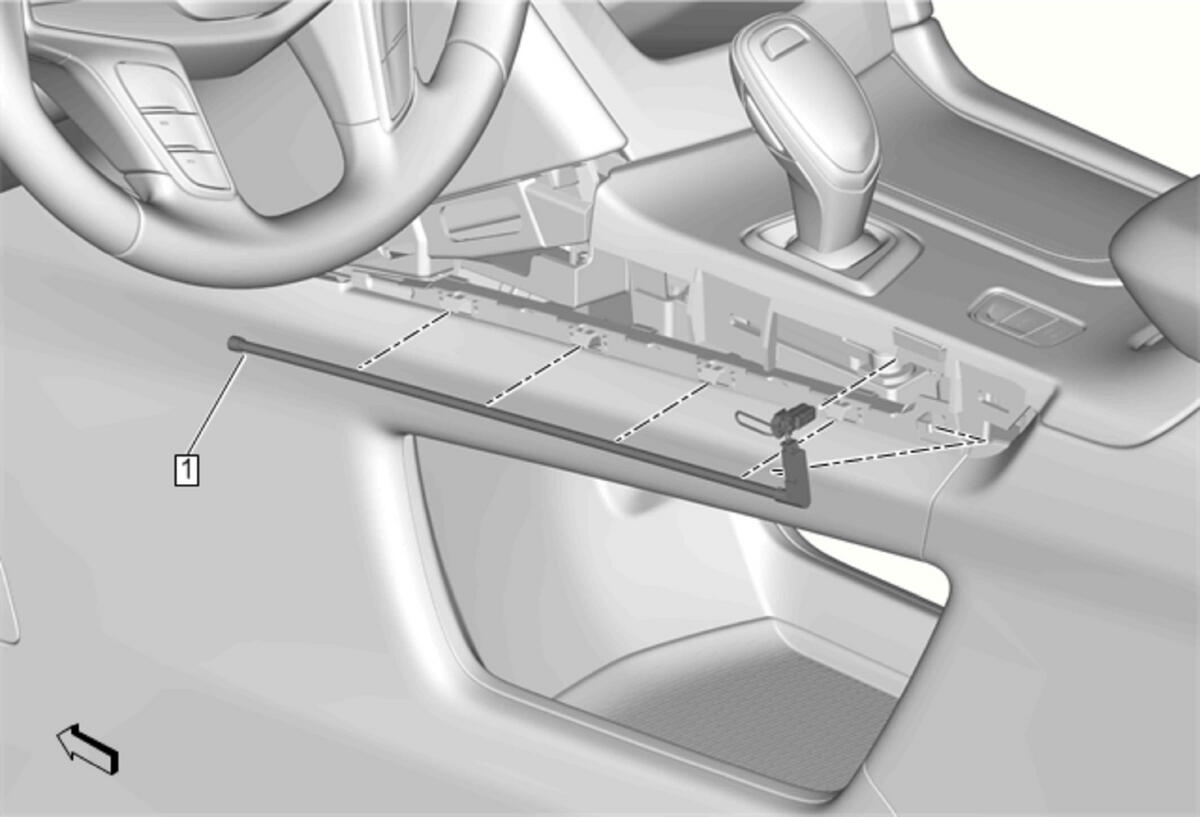

1	Front Floor Console Light Conductor Lamp Procedure Note the location and routing of the lamp prior to removal to ensure proper installation. Disconnect the electrical connector. Release the plastic retaining tabs.

Callout

Component Name

Front Floor Console Light Conductor Lamp

Procedure

Note the location and routing of the lamp prior to removal to ensure proper installation.
Disconnect the electrical connector.
Release the plastic retaining tabs.
