Cargo Center Courtesy Lamp Replacement (Quarter Trim)

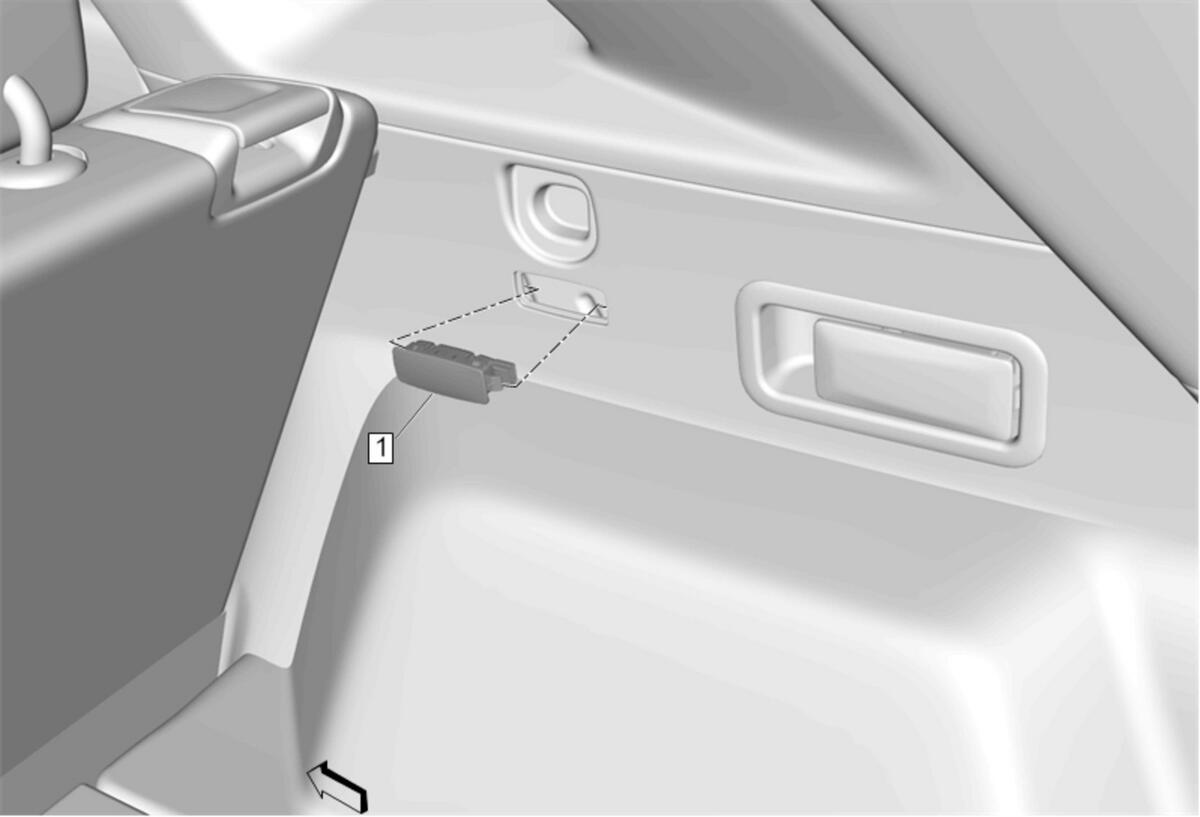

GM4289138
Callout Component Name
1 Cargo Center Courtesy Lamp

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connector.
