Cargo Center Courtesy Lamp Replacement (Liftgate)

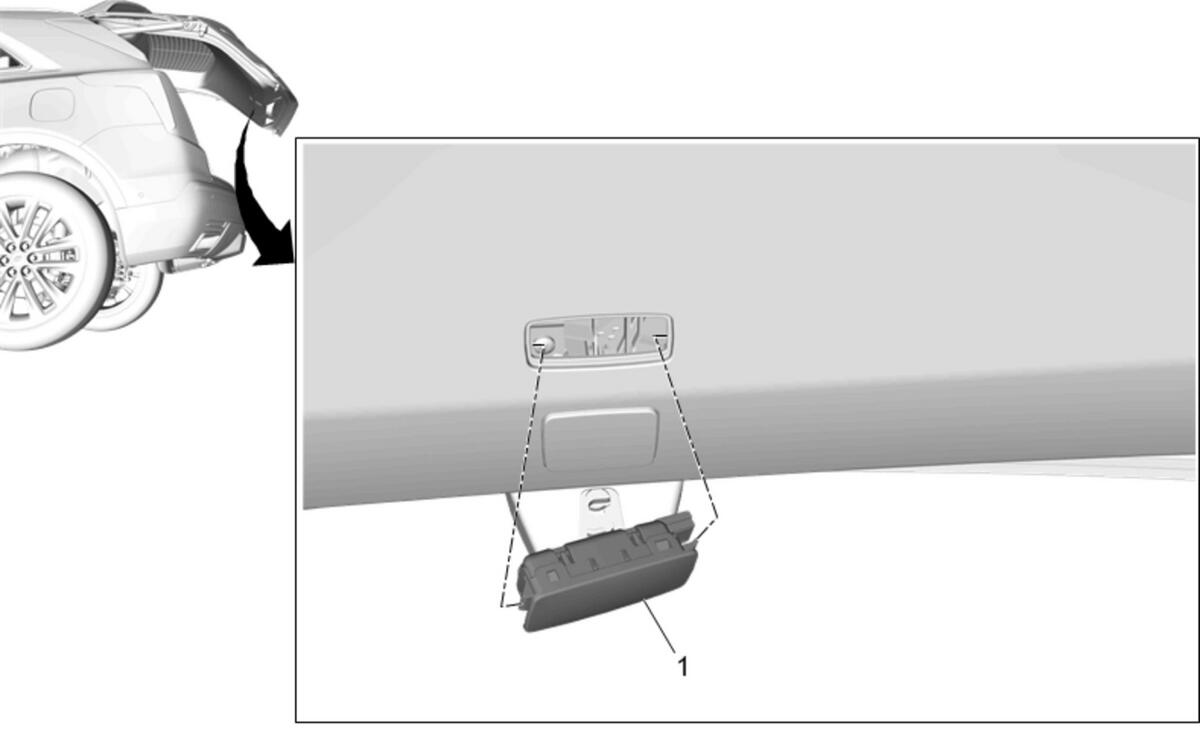

GM4288973
Callout Component Name
1 Cargo Center Courtesy Lamp

Procedure

  1. Use a hook type tool to push in retainer and remove the lamp.
  2. Disconnect the electrical connector.
