Heater Inlet Hose Replacement (LGX)

Courtesy of GENERAL MOTORS COMPANY

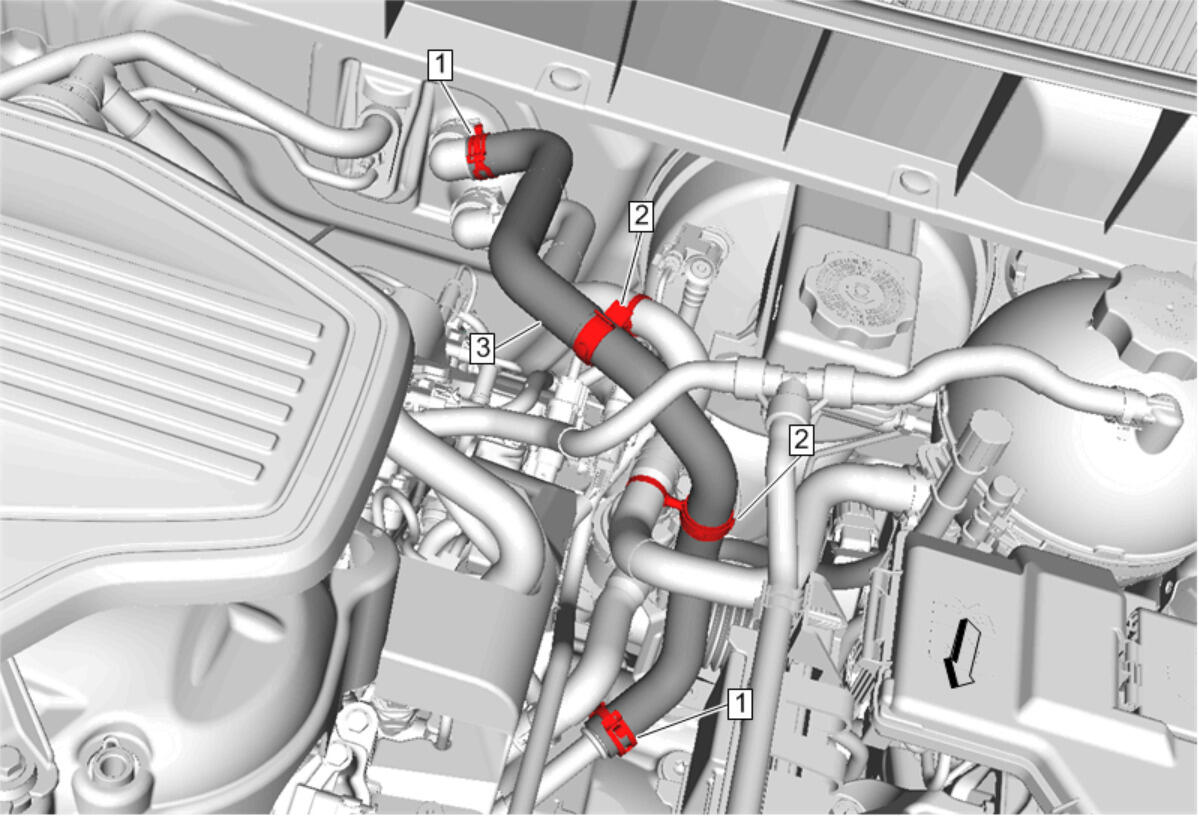

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE-47716)
1	Heater Inlet Hose Clamp[2x] Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Heater Outlet Hose Strap[2x]
3	Heater Inlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE-47716) Start the engine and check for coolant leaks.
