Ignition Coil Replacement - Bank 1

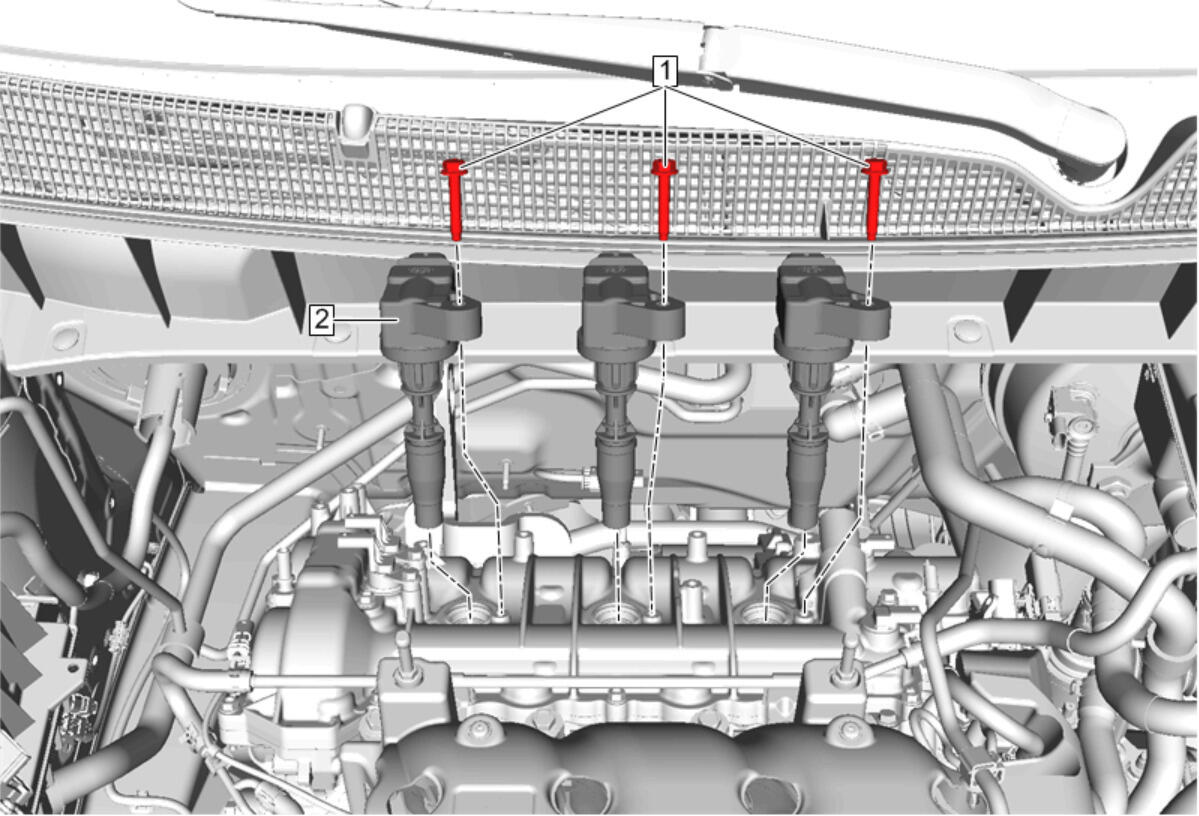

| Callout | Component Name |
|---|---|
| Preliminary Procedure Camshaft Housing Cover Insulator Replacement - Right Side |
|
| 1 | Ignition Coil Bolt[3x]
CAUTION:
Refer to Fastener Caution . Tighten10 N.m (89 lb in) |
| 2 | Ignition Coil[3x] |
