Evaporative Emission Canister Purge Solenoid Valve Replacement

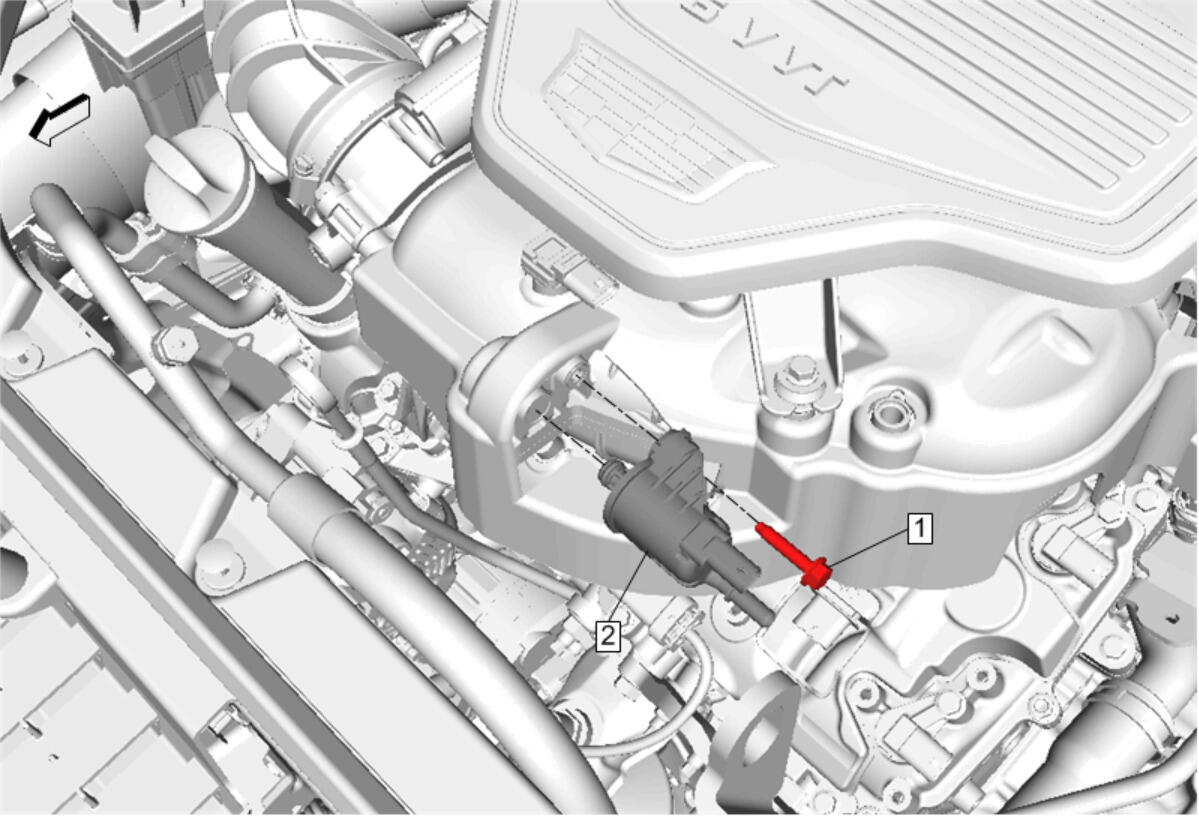

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Disconnect the evaporative emission line. Plastic Collar Quick Connect Fitting Service Refer to Safety Glasses Warning . |
|
| Evaporative Emission Canister Purge Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
|
| 1 | Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect the electrical connector. |
