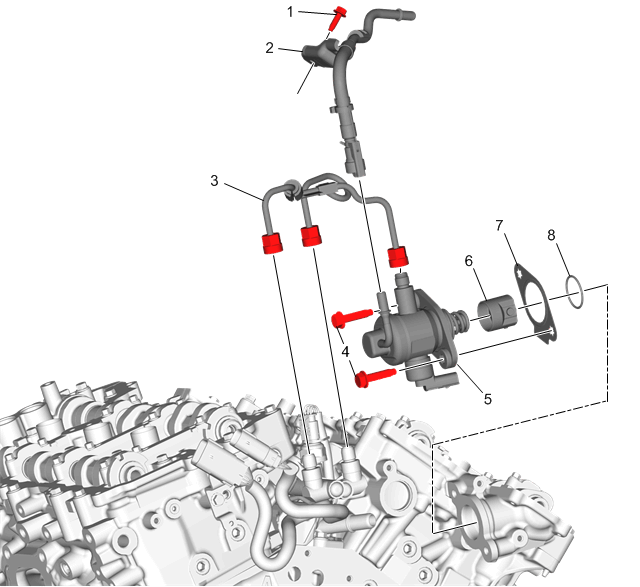

Fuel Pump Removal
| Callout | Component Name |
|---|---|
| 1 | Fuel Feed Pipe Bolt
NOTE:
This is a camshaft cover bolt. |
| 2 | Fuel Feed Pipe |
| 3 | Fuel Feed Intermediate Pipe Procedure Remove and DISCARD the pipe. |
| 4 | Fuel Pump Bolt [2x]
CAUTION:
Alternately loosen the fuel pump bolts one turn at a time until the pump is fully disengaged from fuel pump lifter follower. Trying to remove the pump bolts without even side-to-side loosening may result in pump plunger damage Procedure Remove and DISCARD the bolt. |
| 5 | Fuel Pump |
| 6 | Valve Lifter Follower |
| 7 | Fuel Pump Bracket Gasket
NOTE:
If a high pressure pump is replaced on an engine which originally had a pump WITH a gasket, it must be rebuilt WITH a pump kit that includes the gasket; if a high pressure pump is replaced on an engine which originally had a pump WITHOUT a gasket, it must be rebuilt WITHOUT a gasket. |
| 8 | Fuel Pump O-Ring Procedure Remove and DISCARD the O-ring seal. |
