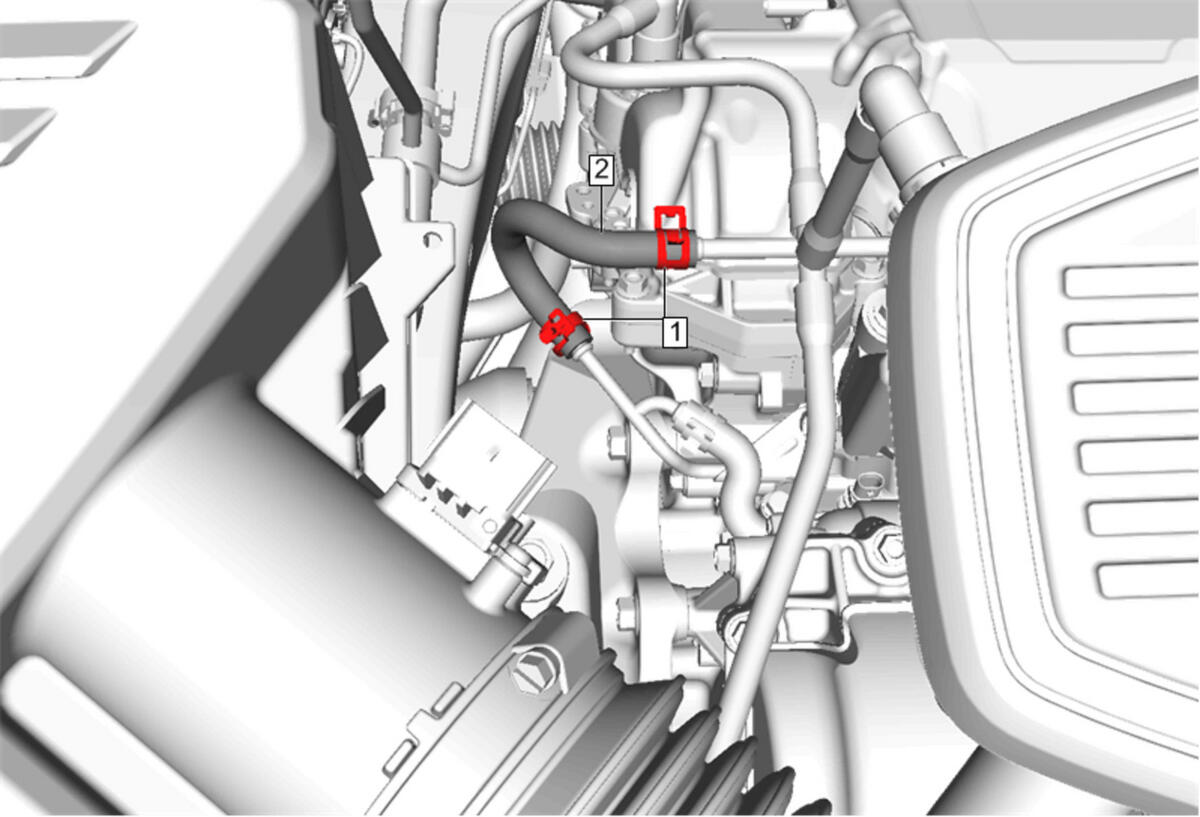

Radiator Surge Tank Inlet Hose Replacement (Radiator Surge Tank Outlet Pipe to Engine Coolant Air Bleed Pipe, LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE-47716)
1	Radiator Surge Tank Inlet Hose Clamp[2x] Procedure  Hose Clamp Replacement Guidelines - Spring Type
2	Radiator Surge Tank Inlet Hose
