Spark Plug Replacement (Bank 2)

Callout	Component Name
Preliminary Procedure Ignition Coil Replacement - Bank 2

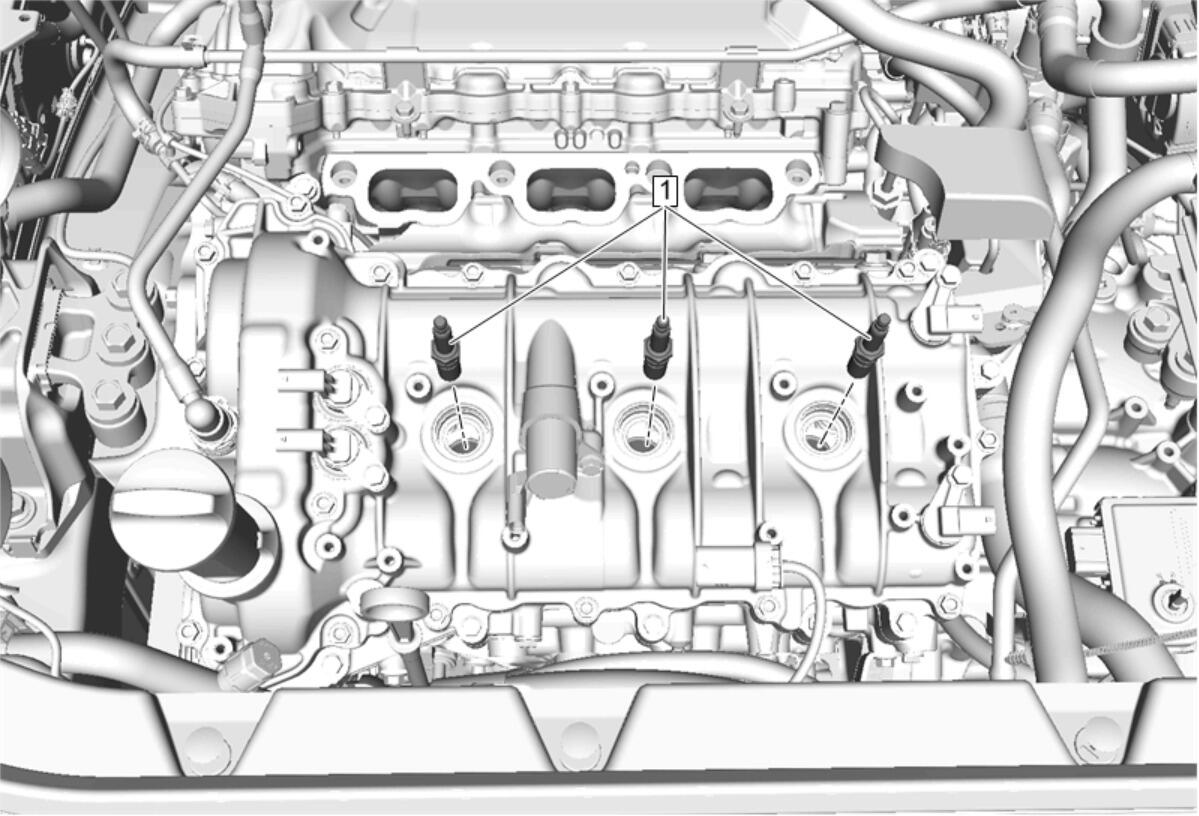

1	Spark Plug[3x] CAUTION: Refer to Component Fastener Tightening Caution . Procedure If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped. Tighten 18 N.m (13 lb ft)

Callout

Component Name

Spark Plug[3x]

CAUTION:

Procedure

If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection
If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped.
Tighten

18 N.m (13 lb ft)
