Installation Procedure

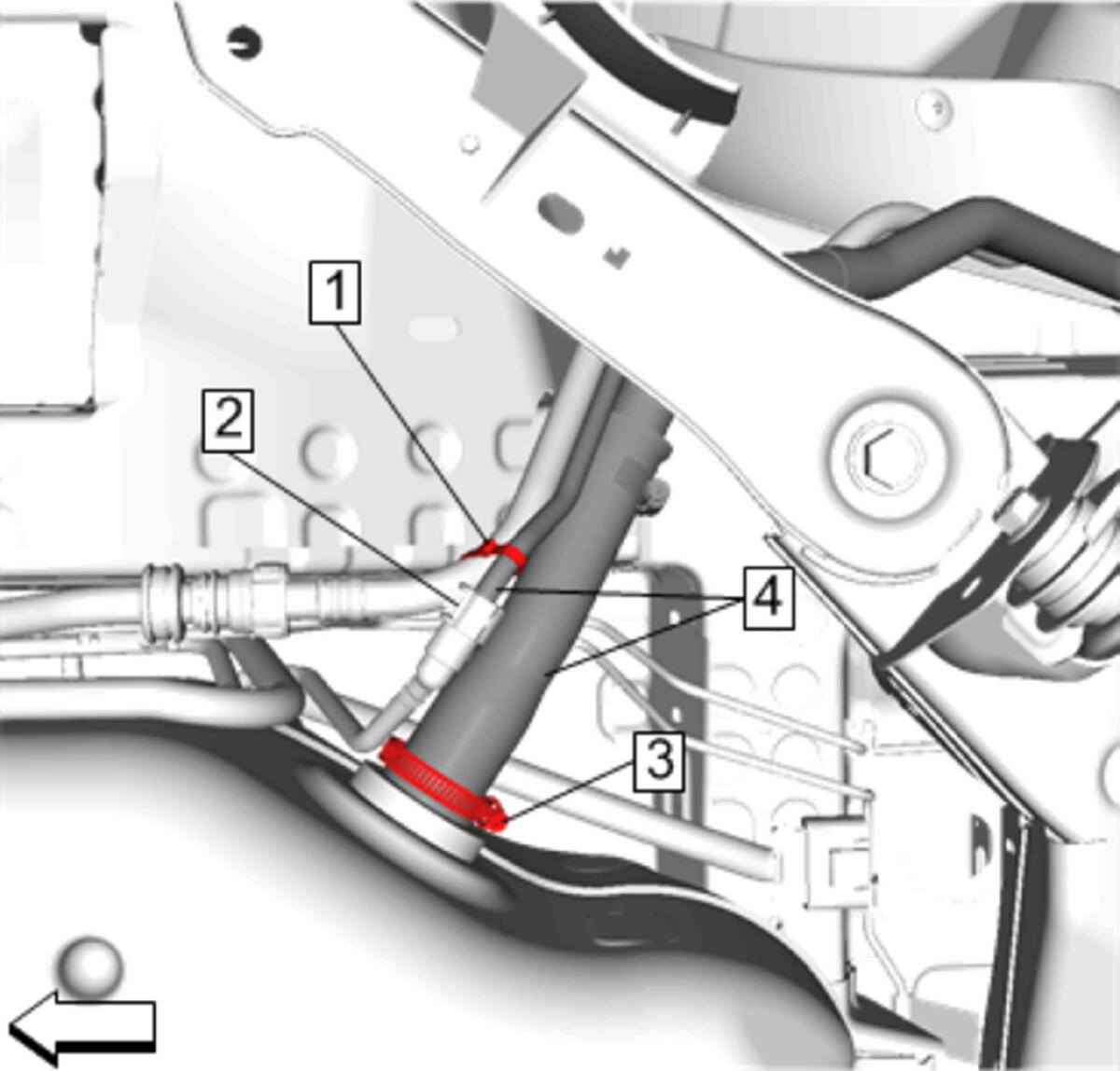

Fuel Tank Filler Hose (4) - Install
- Fuel Tank Filler Hose Clamp(3) - Install 4 N.m (35 lb in)
- Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Tie Strap (1) - Install NEW

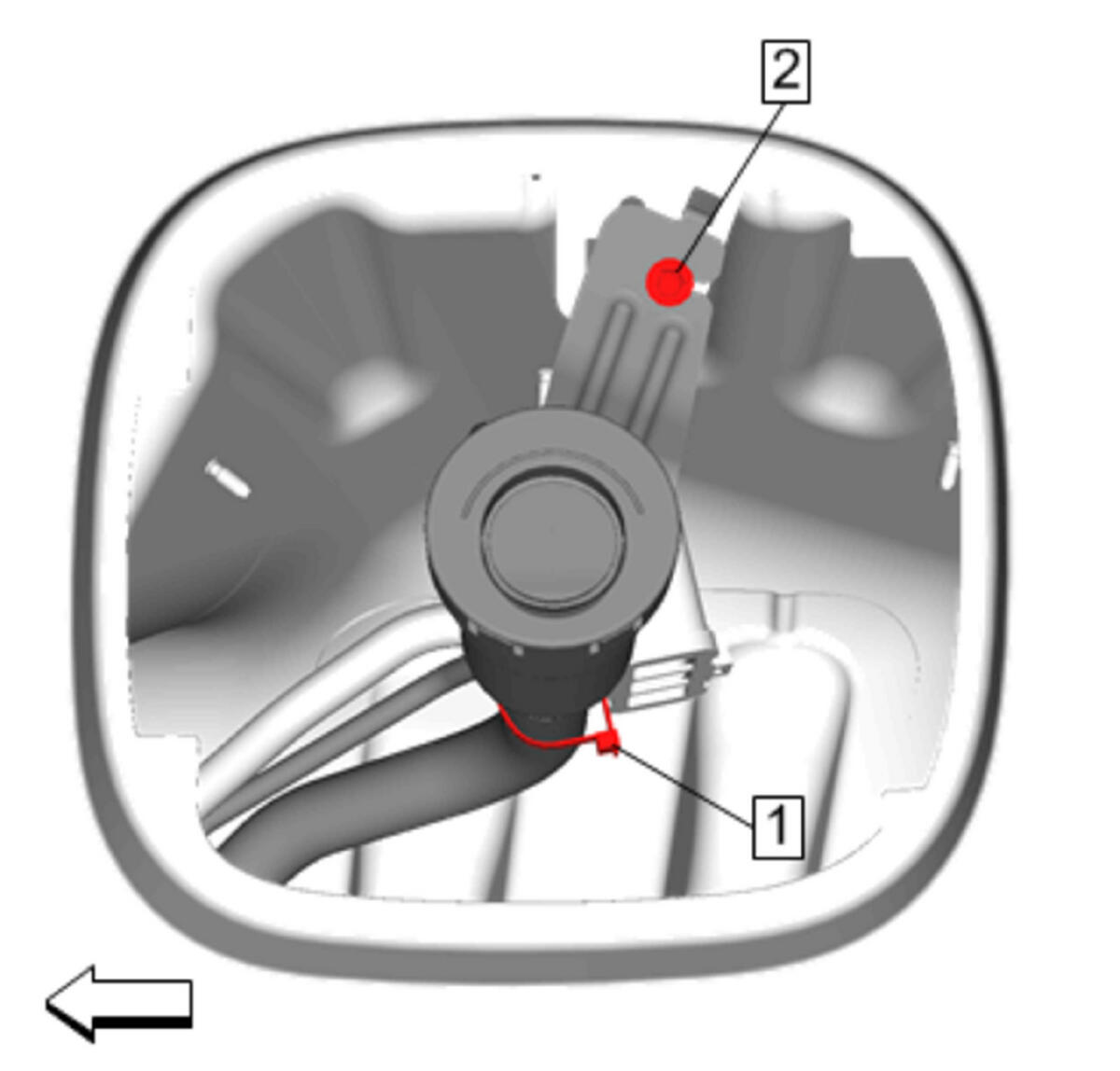

Fuel Tank Filler Pipe Bolt (2) - Install 9 N.m (80 lb in)

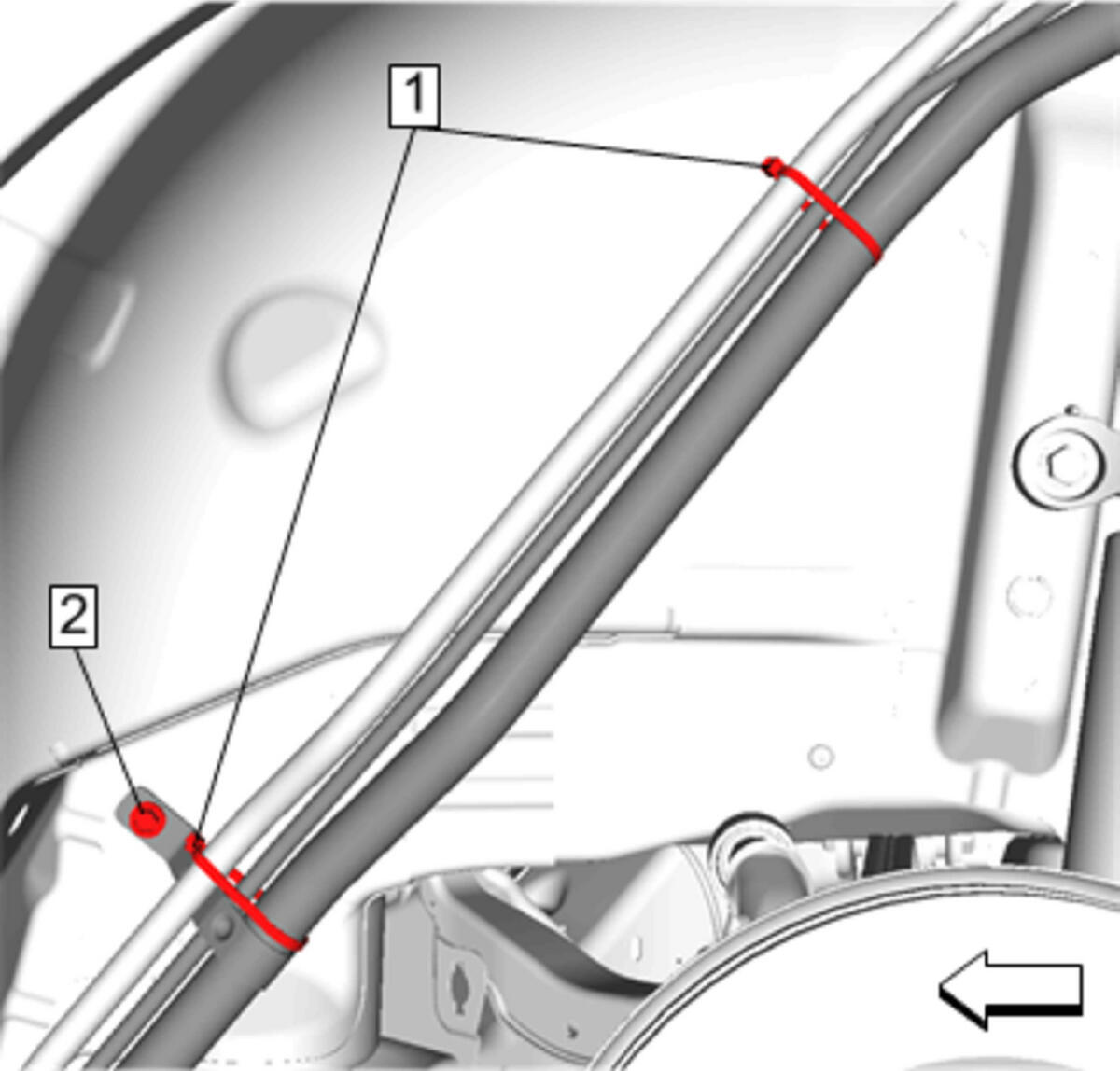

- Tie Strap (1) - Install NEW [2x]
Fuel Tank Filler Pipe Bolt (2) - Install 2.5 N.m (22 lb in)
- Tie Strap (1) - Install NEW
- Fuel Tank Filler Pipe Housing - Install - Fuel Tank Filler Pipe Housing Replacement
- Rear Wheelhouse Liner - Install - Rear Wheelhouse Liner Replacement
CAUTION:
Refer to Fastener Caution .
